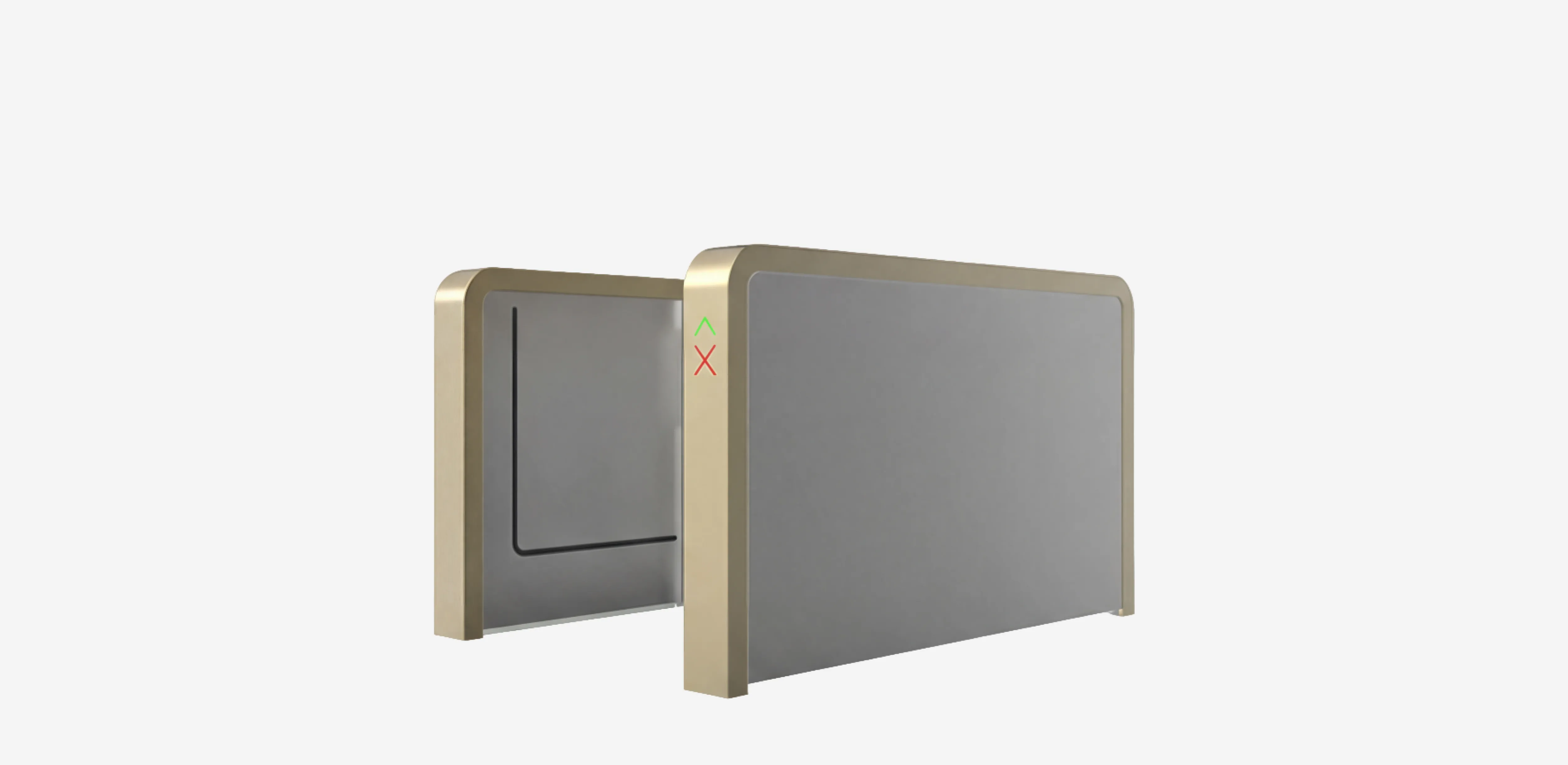

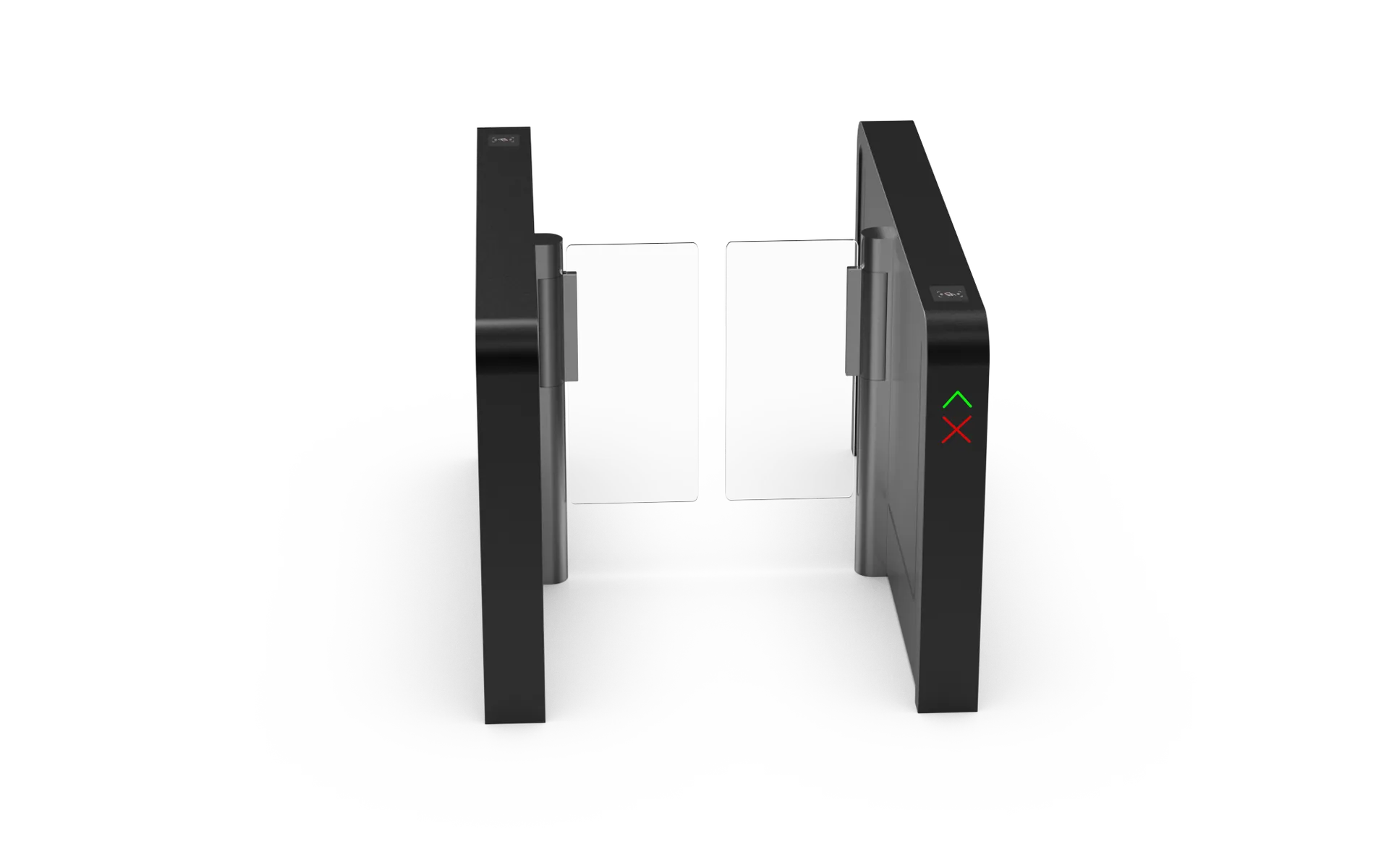

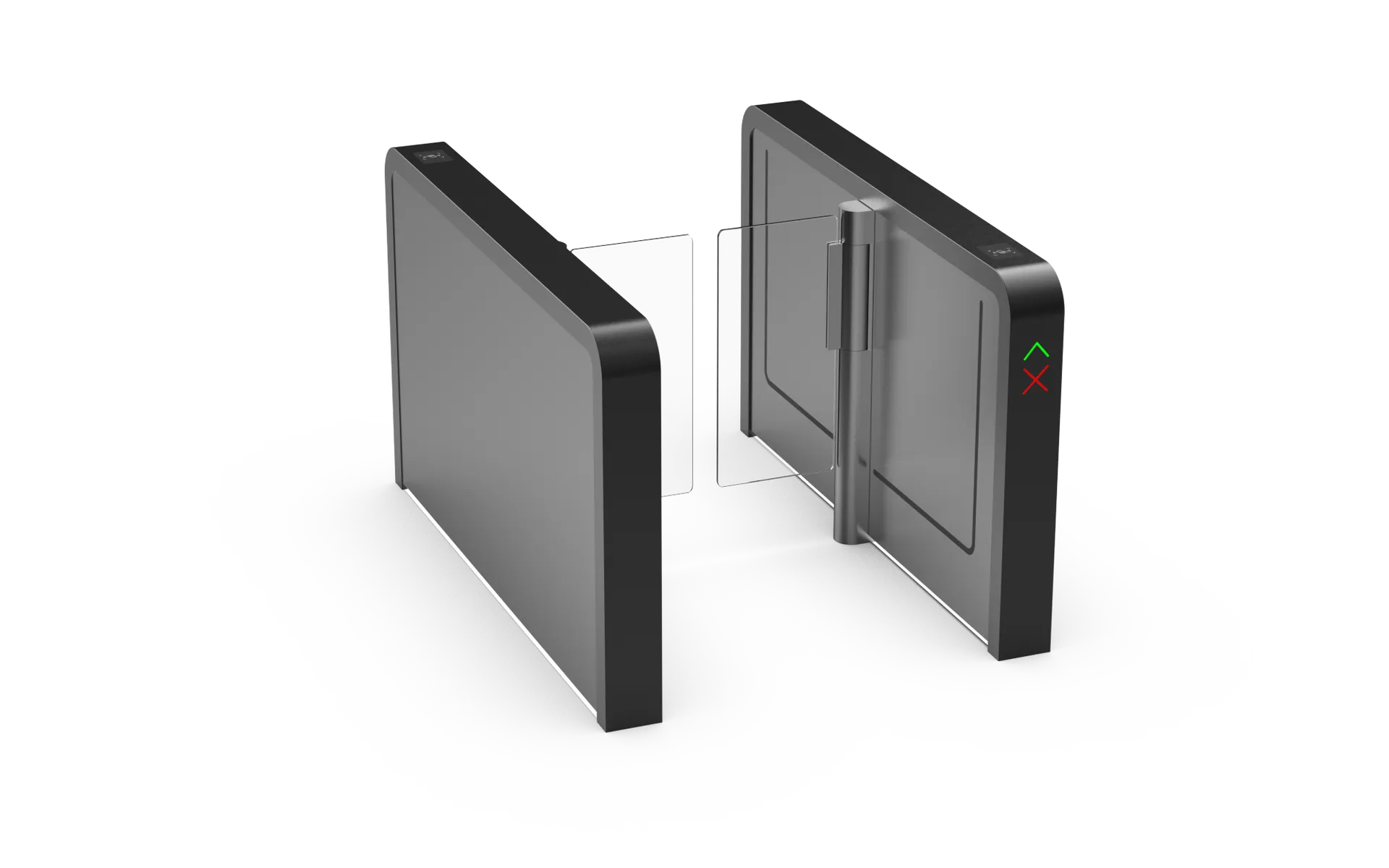

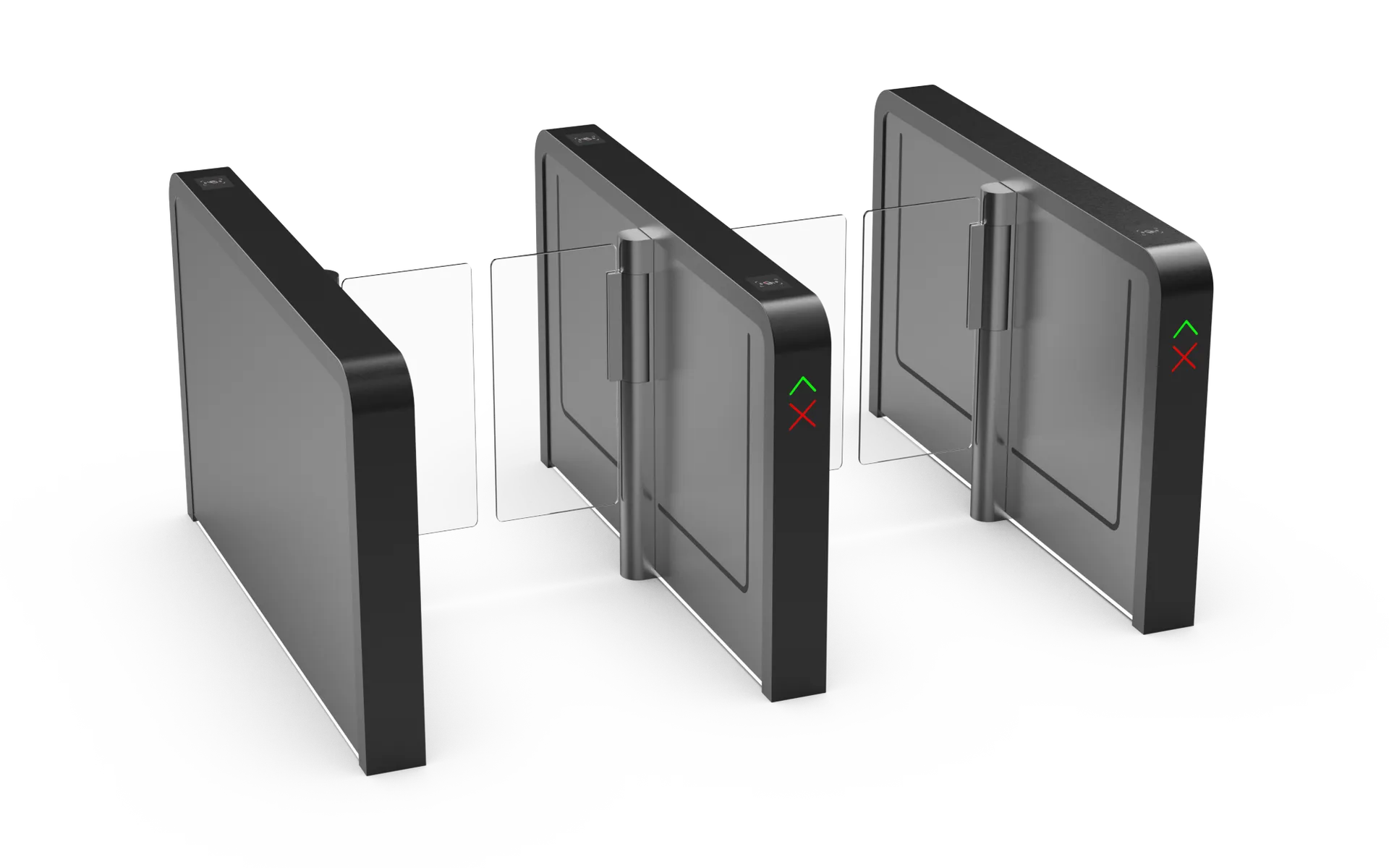

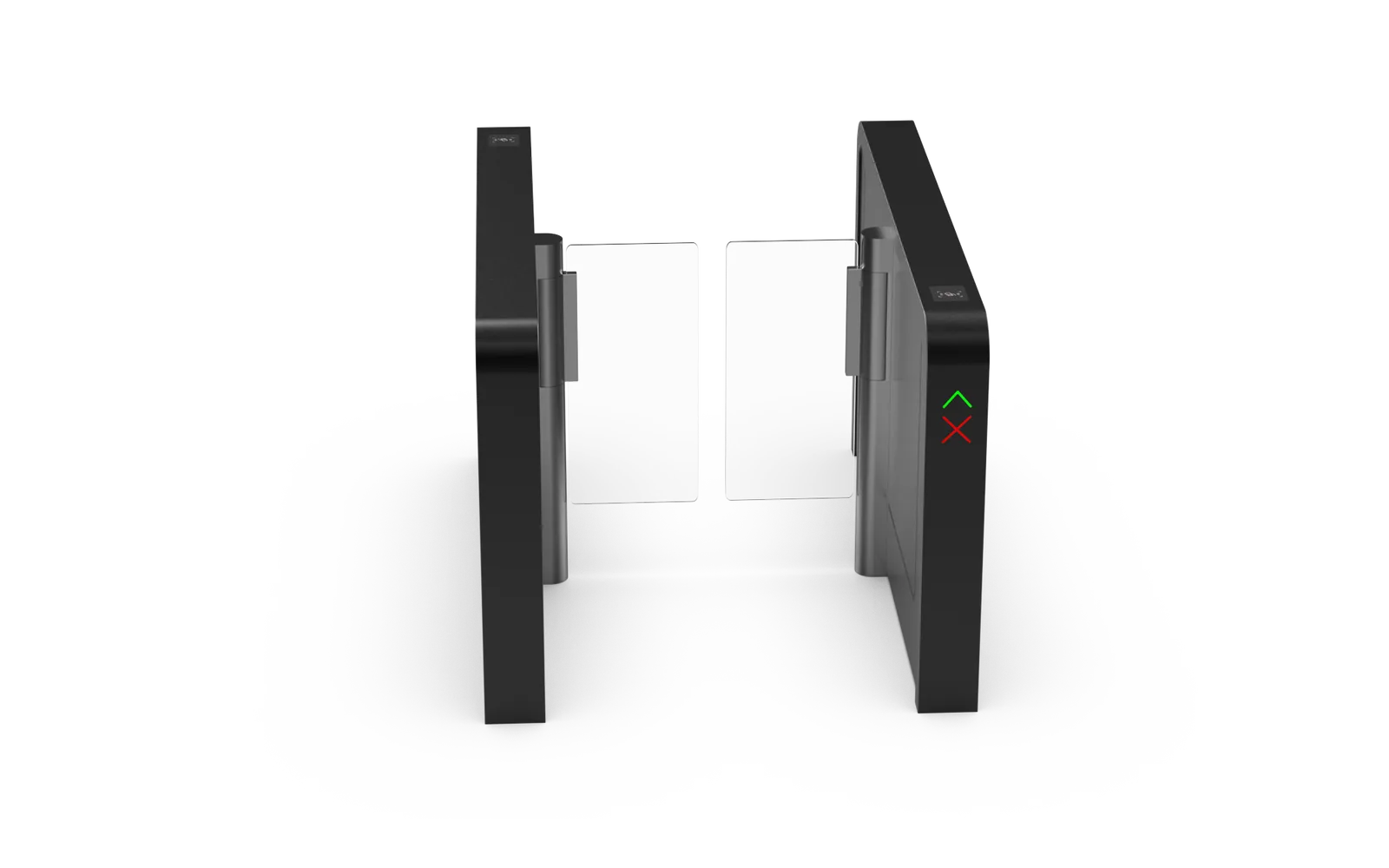

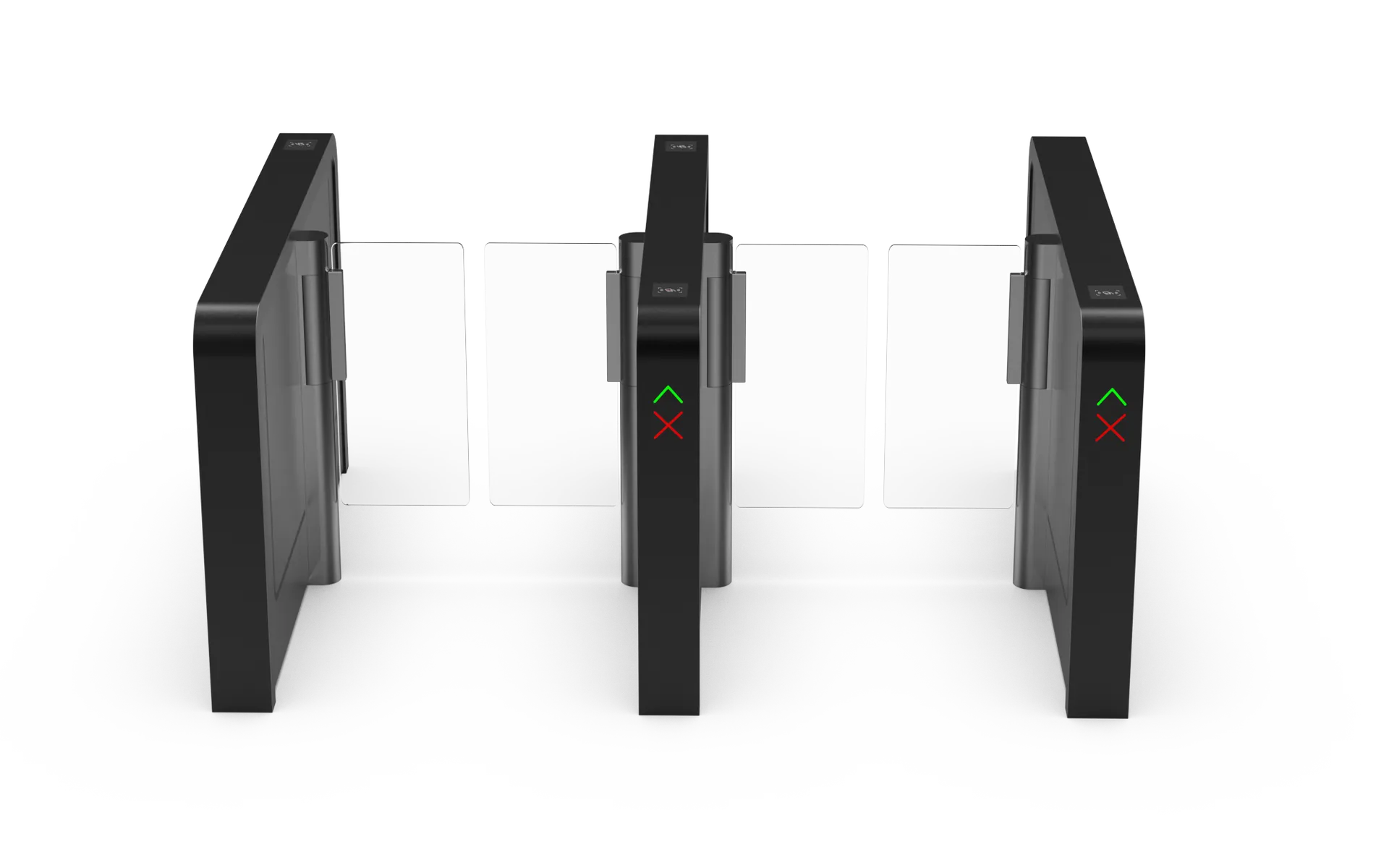

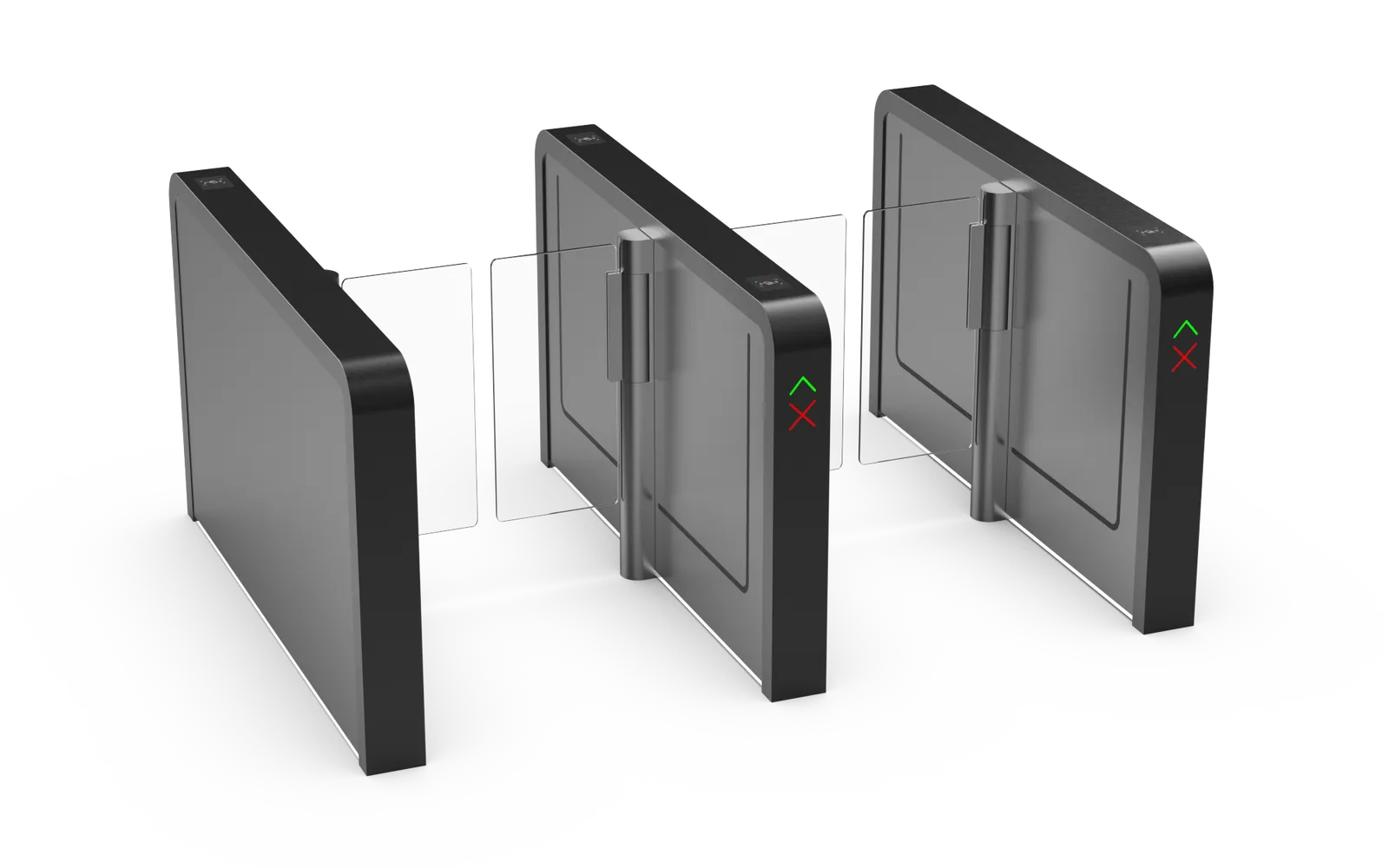

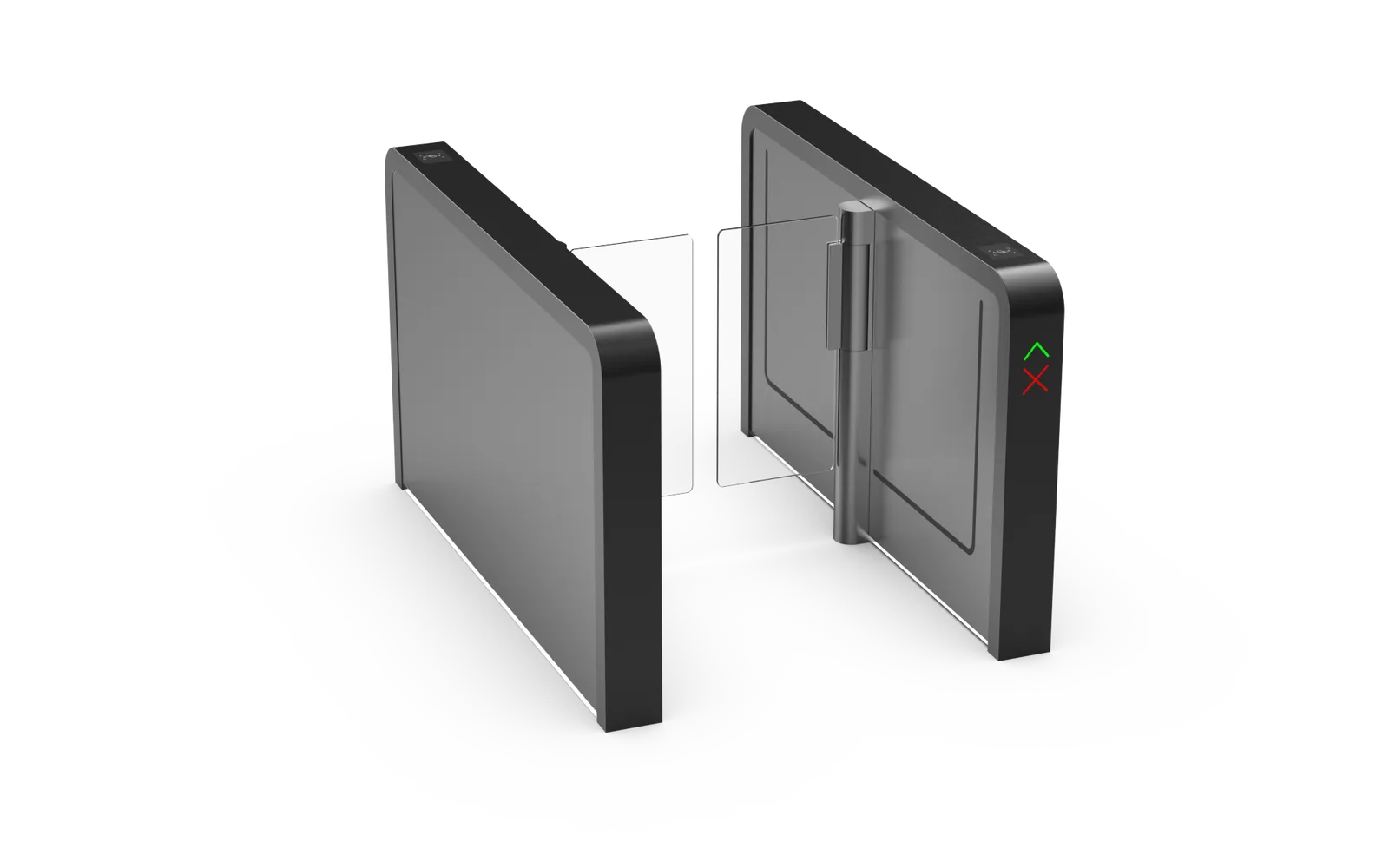

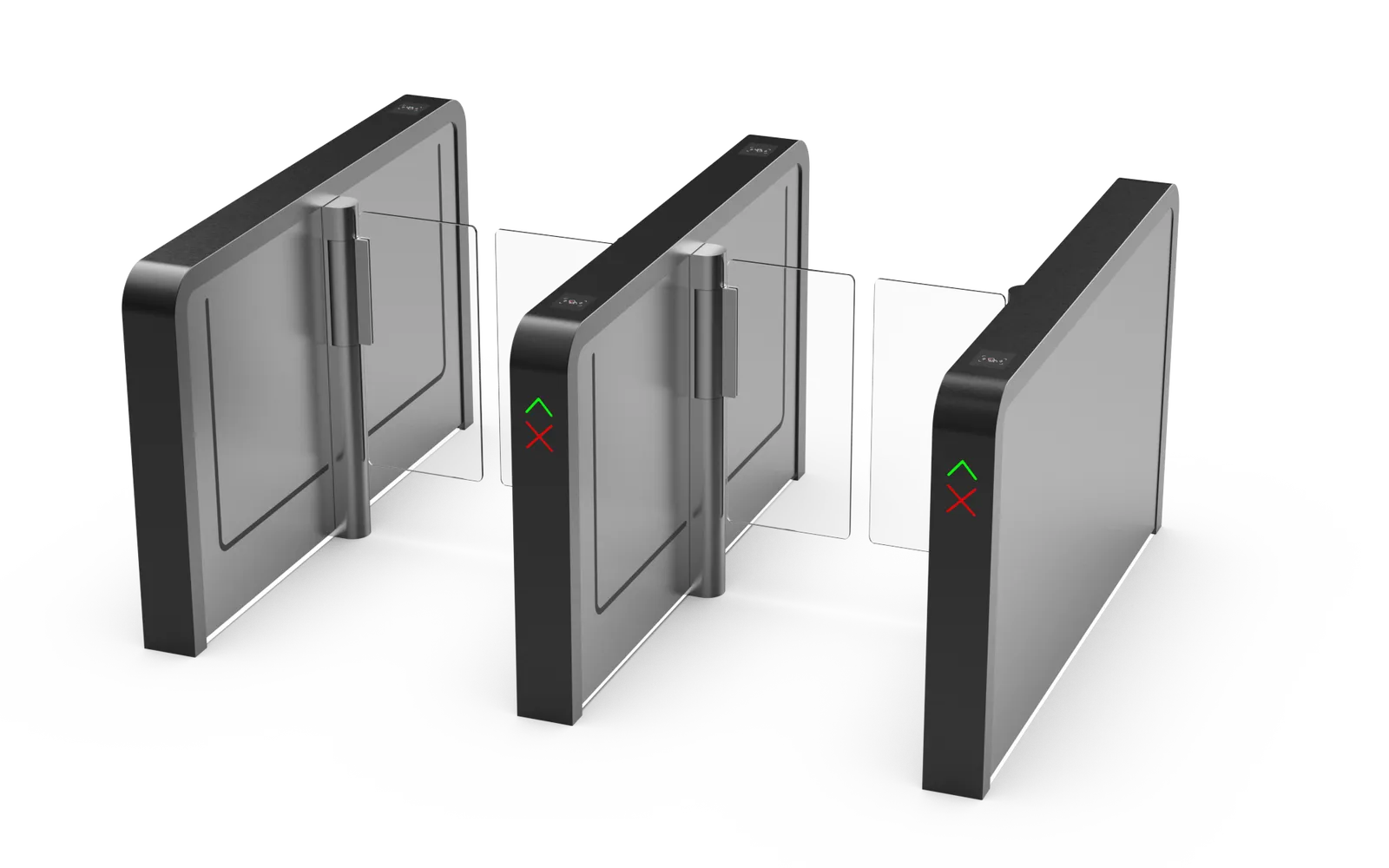

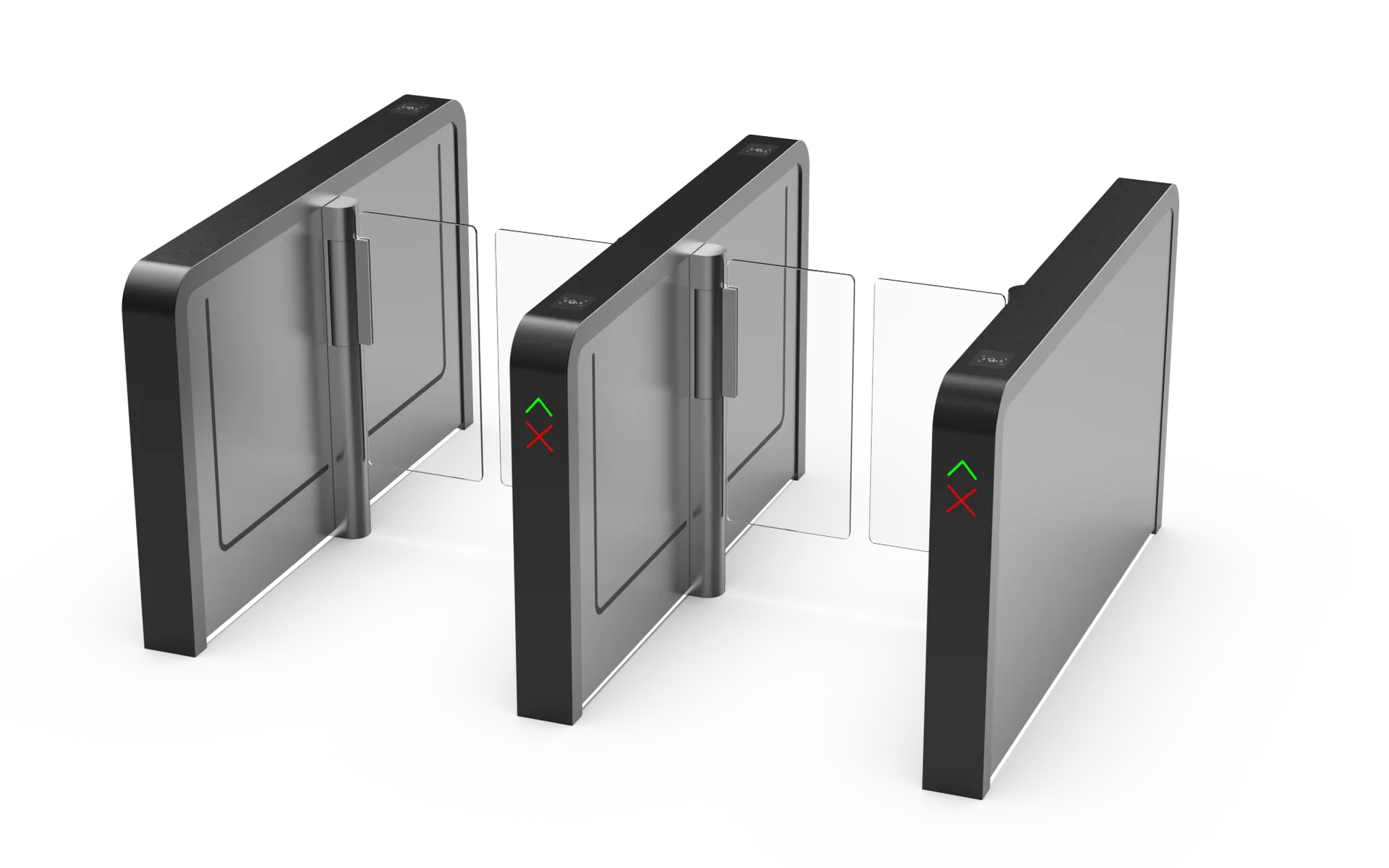

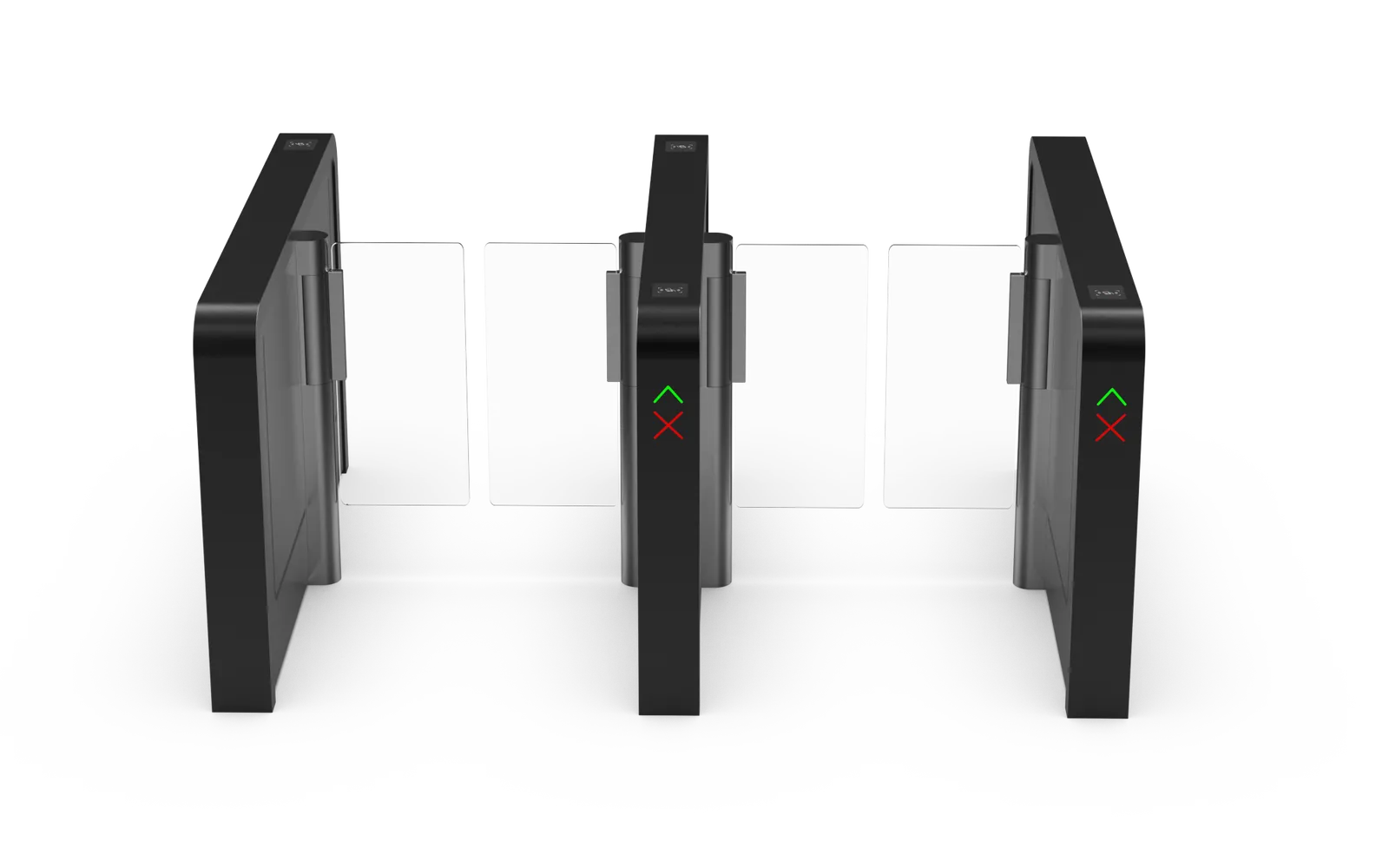

AVIX AURORA X is an intelligent automatic speed gate designed for efficient pedestrian flow management. It combines the advantages of a swing-gate design with a wide passage and a high level of security provided by integrated infrared sensors. The gate continuously monitors the passage area and enables convenient control of personnel entry and exit. The infrared sensor system protects users and prevents unauthorised access by detecting tailgating, movement in the opposite direction and attempts to force the gate leaves open. A configurable passage width of 600 to 1100 mm allows the system to be adapted to the requirements of each facility. With its elegant design and robust construction, AVIX AURORA X is ideal for offices, administrative buildings, public institutions, banks, airports, hotels, educational establishments and industrial facilities.
AVIX AURORA X
| Model | AVIX AURORA X |
| Power supply | 220 V ±10%, 50 Hz ±10% |
| Power consumption | 2×100 W |
| Operating temperature | −20 to +70 °C Down to −40 °C — optional |
| Cabinet width / passage width | 140 mm / 600–1100 mm |
| Length | 1600 mm |
| Height | 961 mm |
| Weight | 2×105 kg |
| Control interface | Relay output (dry contact) |
| Housing material | Brushed SUS304 stainless steel and aluminium alloy |
| Gate leaf material | Acrylic Tempered glass — optional |
