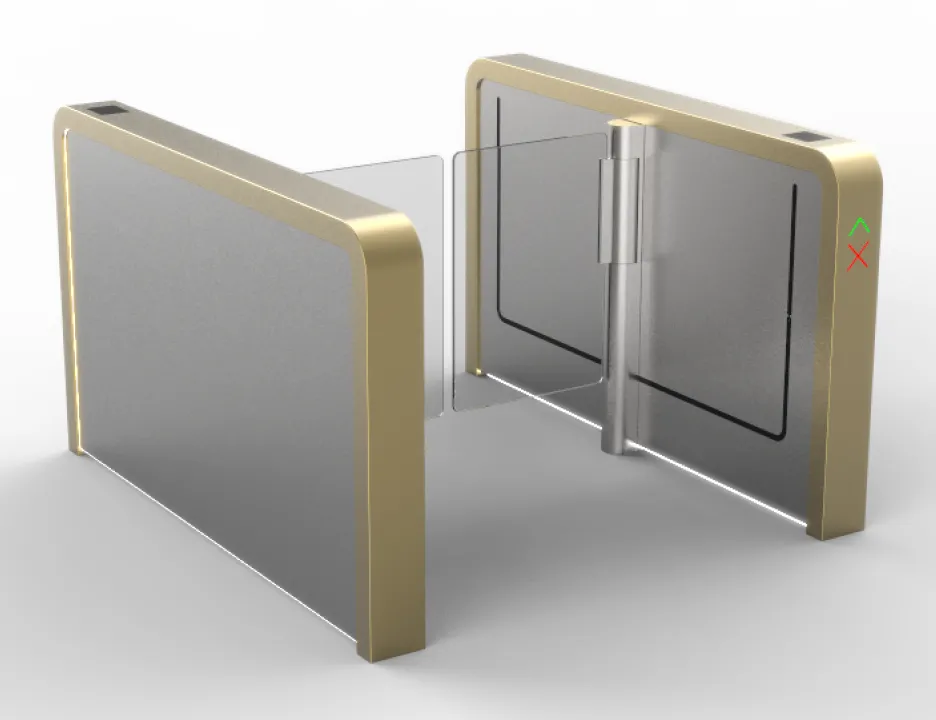

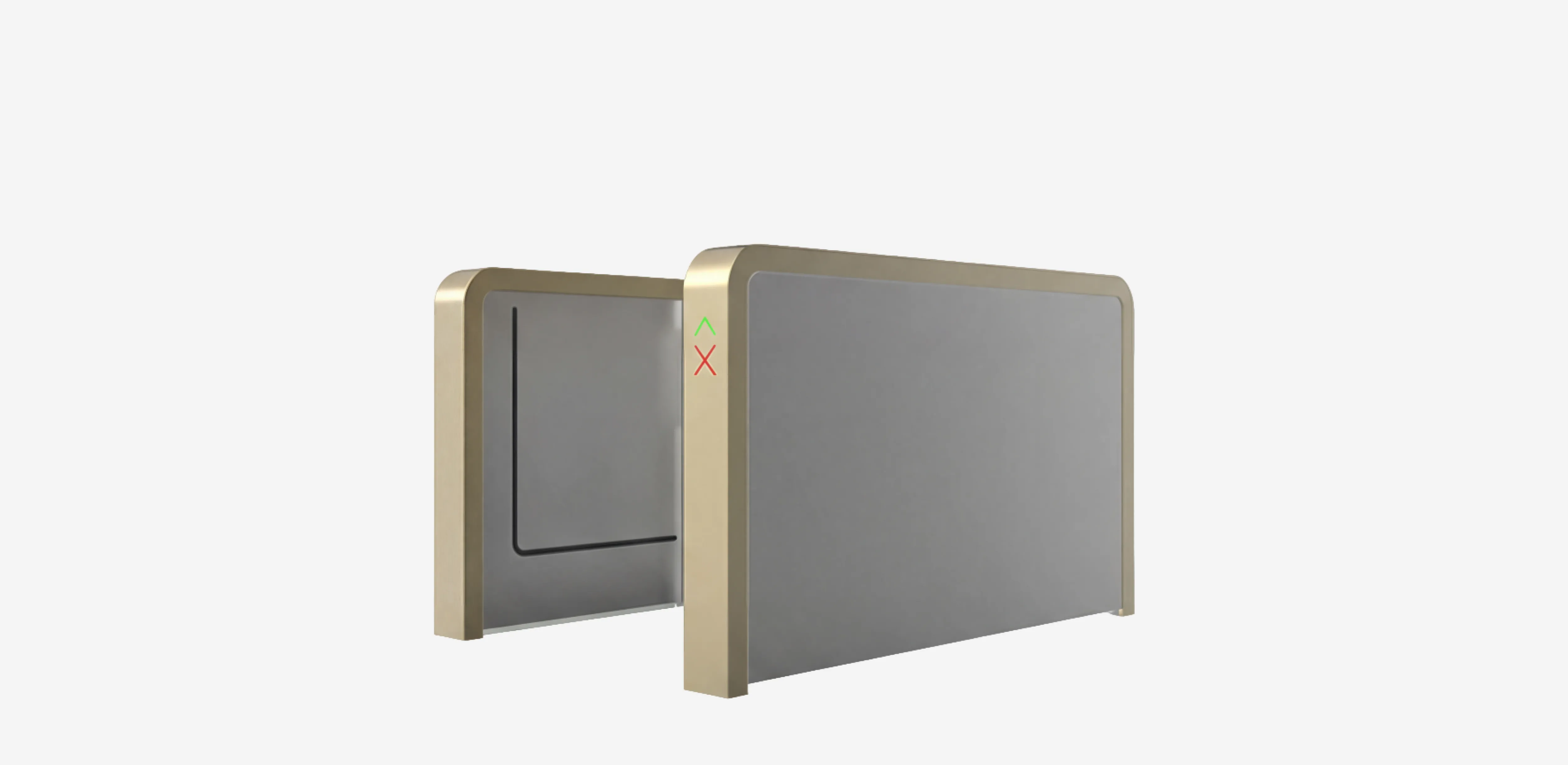

Core X

Monolithic stainless steel structure.
Stainless steel laser cutting and CNC bending form an integral, elegant structure without unnecessary joints. The cabinet is corrosion- and abrasion-resistant, ensuring a long service life even under intensive daily use.

Seamless component integration.

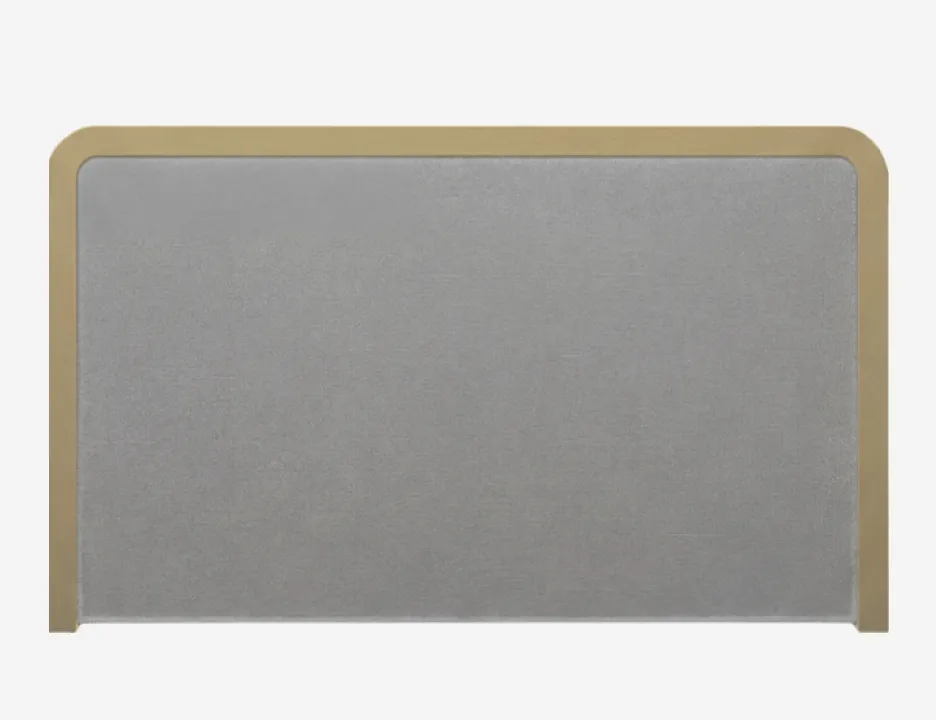

Traditional mortise-and-tenon craftsmanship combined with seamless integration technology demonstrates the turnstile's superior build quality. Side covers are made of brushed SUS304 stainless steel, 2.0mm thick, and a floating light design at the base creates a modern ambient guidance effect along the passage.

Triple passage protection.
14 pairs of hidden IR sensors provide three levels of control at once: anti-tailgating protection against unauthorized passage on a single authorization, anti-intrusion protection against reverse entry, and anti-pinch/collision protection during panel movement.

High-speed chip and AI-driven control.
A high-performance chip with an AI algorithm controls the mechanism, delivering a smooth motion curve, accurate positioning, and steady start/stop of the panels. A triple-loop PID algorithm monitors torque, speed, and current position in real time, reacting instantly to prevent pinching.

Support for multiple identification methods.
Core X is compatible with several passage methods: card reader (uni- or bi-directional card swiping), QR code scanner, and face recognition module.

Adjustable passage width.
Passage width is adjustable from a standard 600mm to 900mm — suitable for carts, luggage, or wheelchair users. Direction guidance is provided via red/green LED signals.

Manufactured by Sablex. Full technical specifications are available in the "Specifications" section below.
