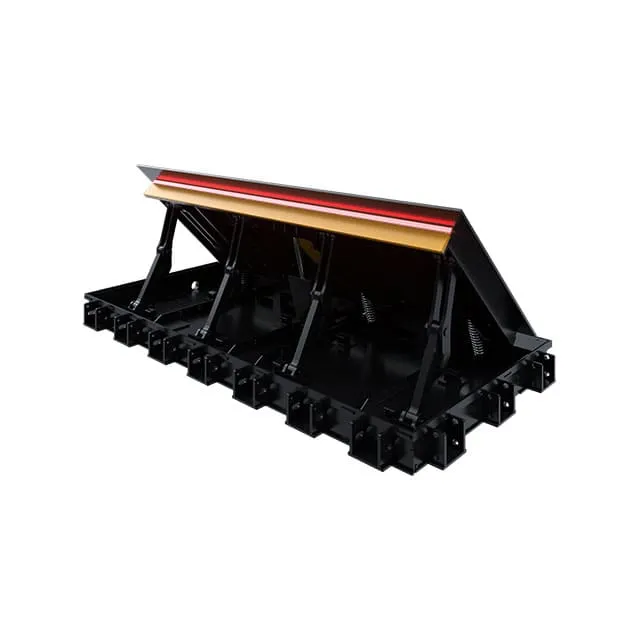

Ultra shallow road blockers PAS68/IWA14-1 (7,5t@64kph) were designed to protect the perimeter of the protected area. This blocker can stop a truck of 7 500 kg (7,5 t) mass driving at 64 kph (40 mph) speed. This is confirmed by successfully passed tests BSI PAS 68:2013 and IWA 14-1:2013. Such a blocker fully meets the requirements for the protection of highly classified objects.In addition to anti-ramming properties, this blocker has another advantage - this is an ultra small installation depth of 200 mm. The completely innovative design of this lock allows you to combine its main anti-ram function with the simplicity and speed of installation.
7,5T - 64KPH ULTRA SHALLOW ROAD BLOCKER
| Model | RB322-01 | RB323-01 | RB324-01 |
| Security class | BSI PAS68:2013 (7,5t@64kph) | ||
| Installation type | Submersible | ||
| Drive | Hydraulic / External | ||
| Blocking width, mm | 2000 | 3000 | 4000 |
| Rising platform lift height | 950 (± 20mm) | ||
| Dimensions*, mm LxWxH | 1640x2170x200 | 1640x3170x200 | 1640x4170x200 |
| Power consumption, kW | 4 - 7,5 (depending on power hoses length) | ||
| Rising time, s | 3,5 (± 1s) / with EFO - 1,5s | ||
| Lowering time, s | 3,5 (± 1s) / with EFO - 1,5s | ||
| Installation depth, mm | 200 | ||
| Maximum axle weight limit, t | 15 | ||
| Penetration resistance, kJ | 1 139 | ||
| Power supply | 3 phases 400 V, 50/60 Hz (standard) 1 phase 230 V, 50/60 Hz (option) | ||
| Protection level for road blocker | IP 67 | ||
| Protection level for control cabinet | IP 54 | ||
| Operating temperatures, °C | -10 / +40 | ||
| Operating temperatures** (option), °C | -40 / +60 | ||
| Material | Structural steel C22 | ||
| Coating | Epoxy Polyurethane RAL 9005 Black / RAL 1003 Yellow | ||
| * Dimension designations see in the Drawings tab ** For temperatures lower than -10 °C use the heating device; for temperatures higher than +40 °C use the cooler device | |||
