Sesame is a one lane type of full height turnstile gate. It ensures vandal proof security level to large variety of possible applications: stadiums, factories, parks, premises with highest security requirements etc. Strenght and durability is granted by robust fully welded design. On ther other hand, attractive for shipment assembly modification of automatic barrier gate is also available.AdvantagesCan be supplied as fully welded or in disassembled condition which has perfect effect to transportation cost;Turnstile is bi-directional;Depending on installation place conditions and Customer`s requirements can be produced of different types of material;Y-type or X-type of rotor for your choice available;Easy integration with any type of ACS;Low power consumption as well as low noise operation;Possibility of customization;Fail safe or fail secure for your choice;Indoor/outdoor application.

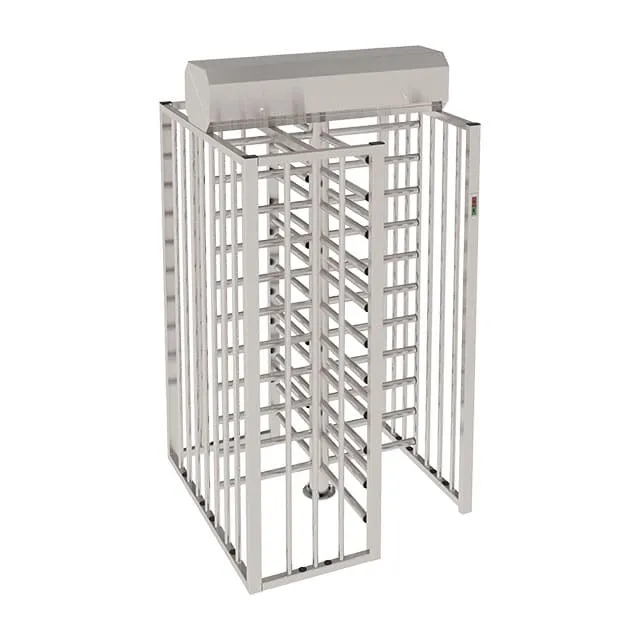

SESAME
| Sesame | Sesame - L | |
| Unit dimensions (WxLxH), mm | X type - 1254x1300x2300 Y type - 1420x1158x2300 | X type - 1254x1300x2300 Y type - 1420x1158x2300 |
| Number of wings (angle) | X type - 4 (90°) Y type - 3 (120°) | |
| Crossing capasity, person/min | 20 | |
| Passage width, mm | X type - 510 Y type - 650 | |
| Weight, kg (not more) | X type - 375 Y type - 375 | |
| Mechanism | Servo-driven (Motorized) or Electromechanical | Servo-driven (Motorized) |
| Standard housing | Brushed SS AISI 304 | |
| Available housing | Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated RAL | |
| Voltage | from the AC (100–240) V, 50/60 Hz from a DC source 12 V | |
| Maximum power consumption, W/pass | 155 | 55 |
| MCBF, cycles | 10 000 000 | 5 000 000 |
| Enclosure rating | IP41/54 * | |
| Temperature range, °С | -40 / +40 | |
| Fail safe Fail secure | option standard | standard ─ |
| * first figure is for indoor installation, second figure is for outdoor installation. Protection level could be up to IP65 upon request. | ||
