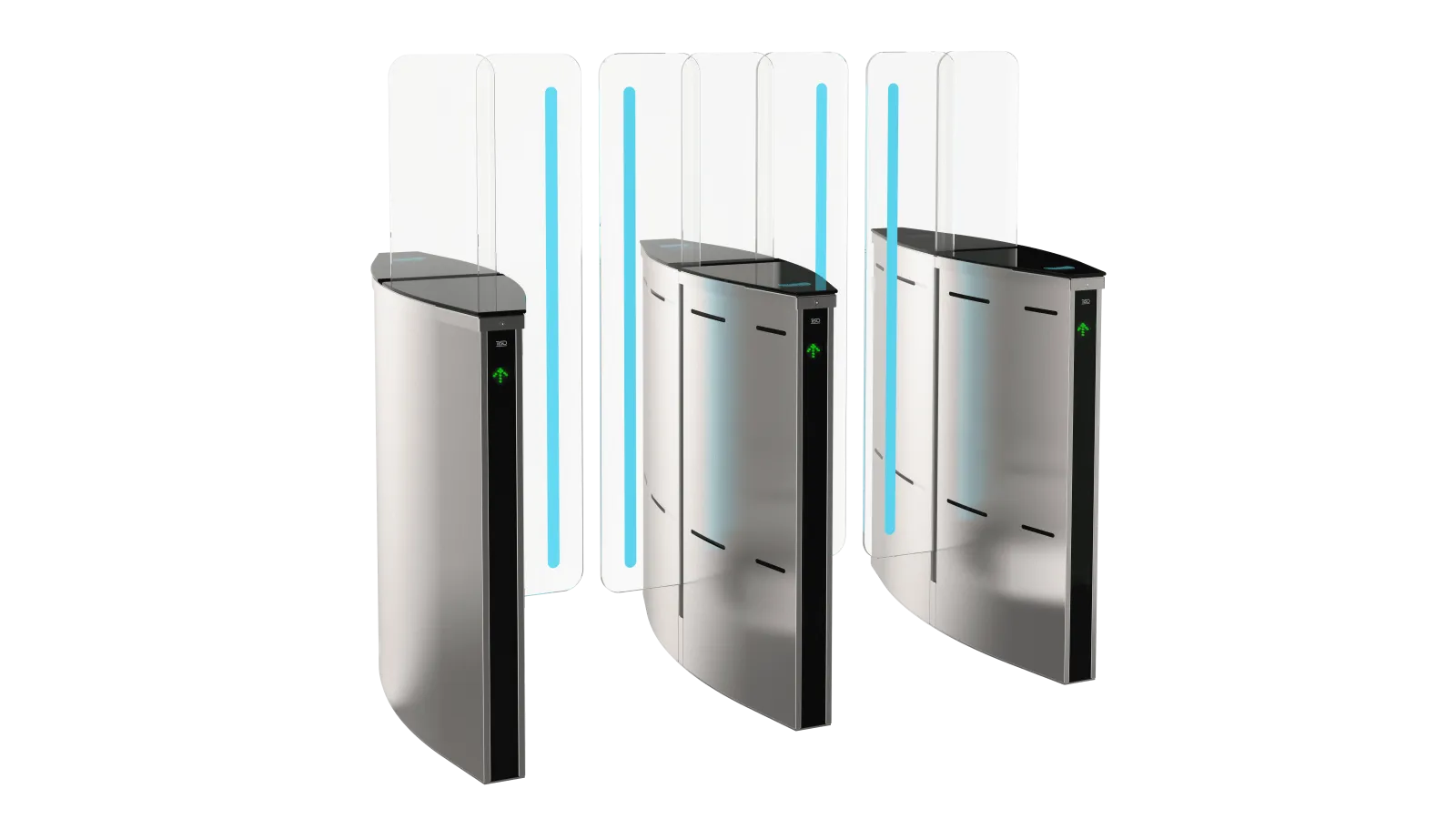

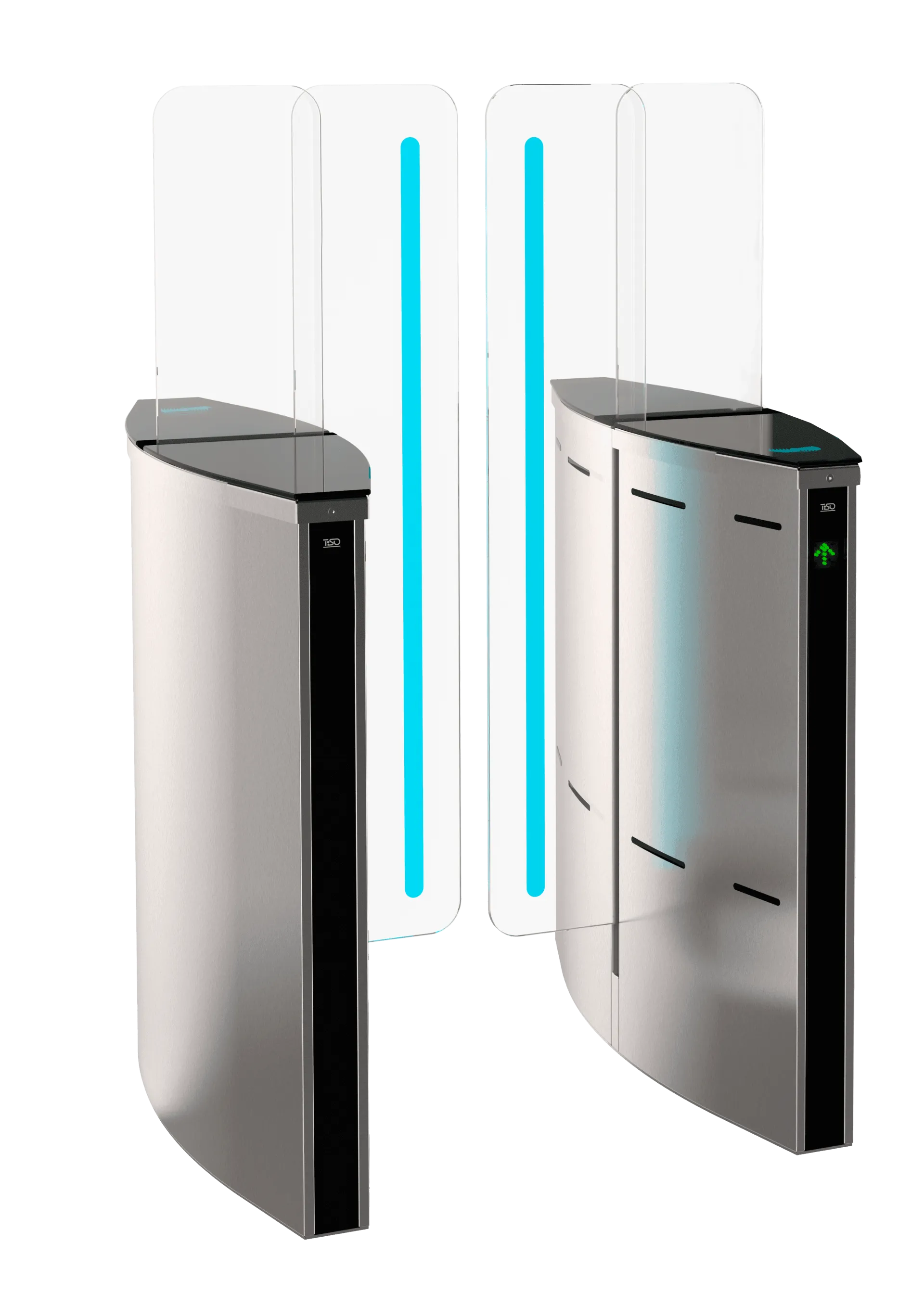

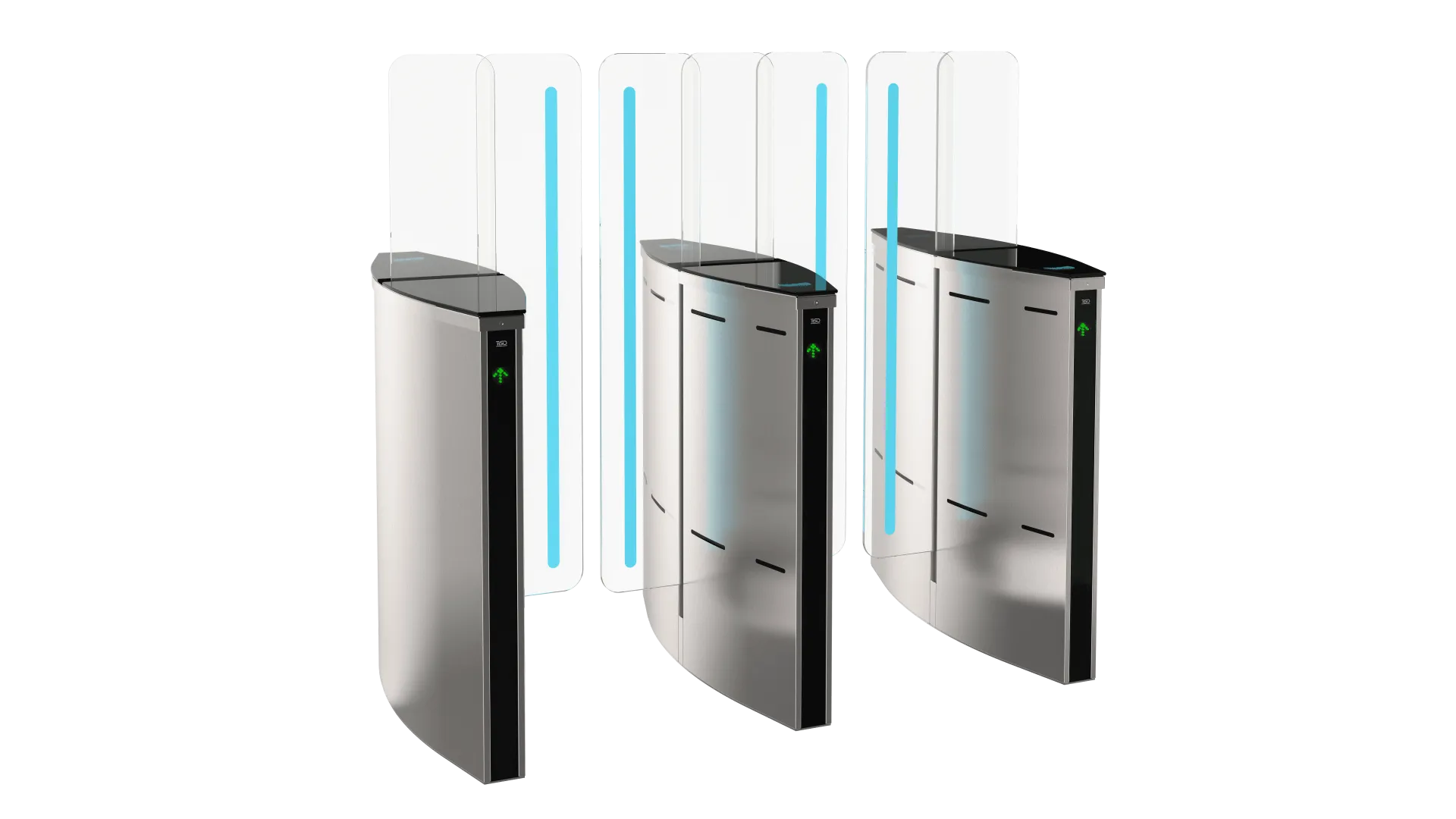

Jetpan is ideally suited for areas with unmanned security, as higher wings prevent vaulting over the turnstile. The Jetpan is also fitted with optical sensors to prevent tailgating. The contemporary design, appearance and functionality makes the Jetpan suitable for a variety of building entrances, such as banks, utility companies and commercial buildings. ● The speed gates have an ultra-modern futuristic design. Our speed gates of this series are ideal for stylish lobby interiors in hotels, banks, office centers, etc; ●BMDrive® Reliable mechanism with powerful BLDC gear motor ensures long term maintenance-free operation; ● Robust PinLock® locking system prevents from full leaves opening manually in case of vandalism; ● The smart self-diagnosing system of mechanism BMDrive® automatically analyzes the system, detects critical malfunctions, and records error log and warnings; ● The BMDrive® mechanism controller is equipped with an OLED display for easy setup and configuration without special programmers, also a full configuration and diagnostics is possible via a USB connector by using a service software for Windows OS; ●Digital control of force and leaf speed in combination with safety sensors prevent a passing person from being struck by a leaf, even in case of an unauthorized passage; ● By use of artificial intelligence algorithms and large number of high-precision infrared passage sensors, the speed gates detects and alarms when two people try to pass by one card, pass in the wrong direction and pass without authorization; ● Sensor system allows detecting the passage of person with luggage, arranging a free exit without the need for identification.
JETPAN
| Jetpan | ||
| Unit dimensions (WxLxH), mm | Stainless steel top - 290x1000x1000 Solid glass top - 290x1000x1000 | |
| Emergency mode (fire-alarm) | Free entry/exit (leaves are opened automatically) | |
| Passage width, mm | 550 | |
| Open or close speed | 0,7/1s | |
| Mechanism | BMDrive® servodrive (BLDC) | |
| Locking system | DeadLock® | |
| Standard housing | Brushed AISI 304 | |
| Available housing | Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated RAL | |
| Top lid | Stainless steel top with plastic inserts- With solid glass top | |
| Voltage | from the AC (100–240) V, 50/60 Hz from a DC source 12 V | |
| Power Fail | Fail safe (gates could be opened manually — standard) | |
| Indication | DotLights®, RFIDLights®, EdgeLight®, FloorLights® | |
| * option, on customer's request | ||
