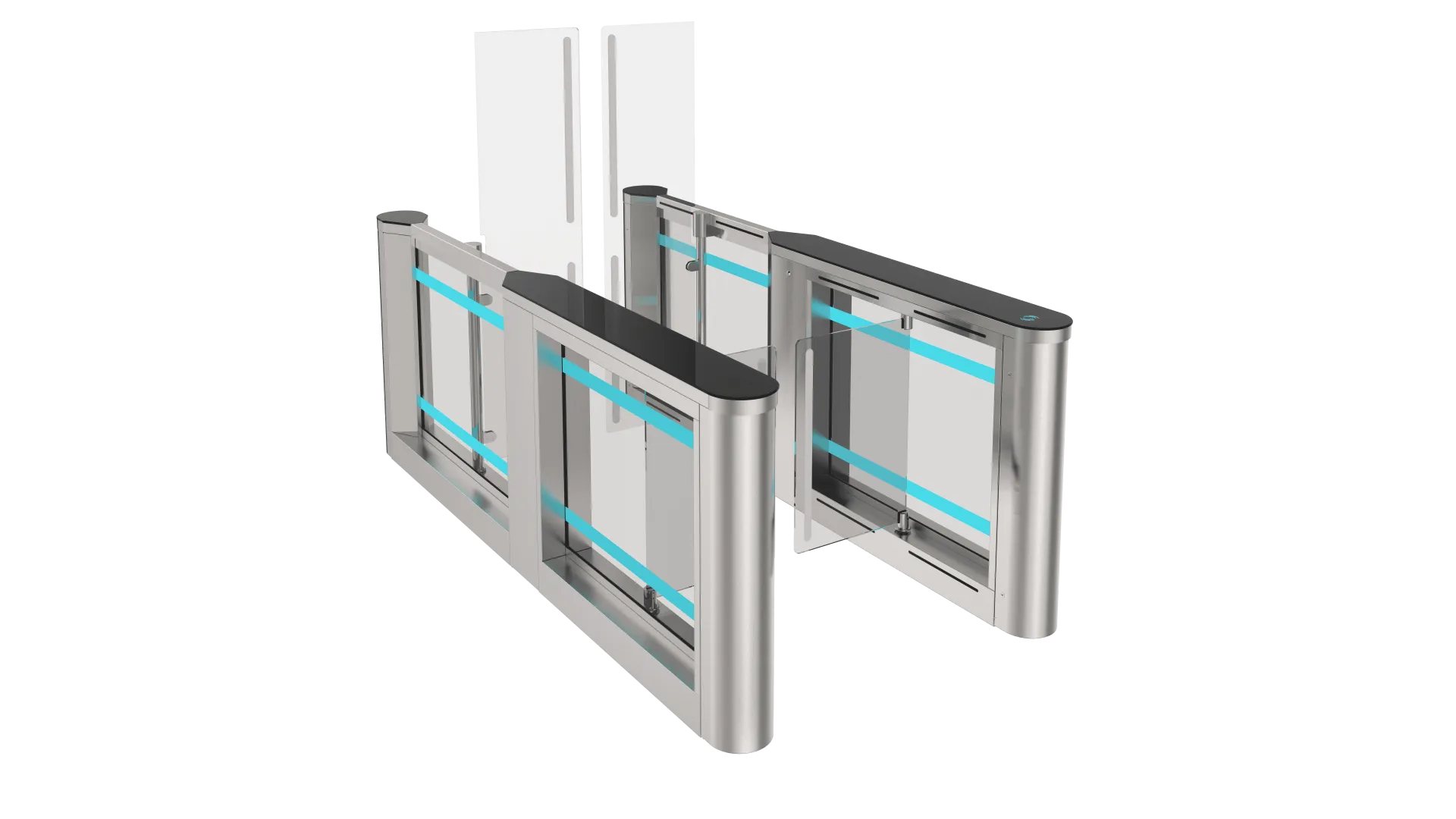

Based on the Sweeper and Sweeper-HG models, the Sweeper-AL is a bespoke system enabling you to order the system you need: two waist-height glass blades or two full-height glass blades or one of each. Also there is plenty of space for additional equipment such as access control systems or identification devices, which can be situated at the start and in the middle of the whole system. Also, additional post or holder for identification devices (IRIS reader, finger-print, face-recognition etc) can be ordered. It can be single-passage only or multi-passage. Sweeper-AL pedestrian turnstile gate is ideally suited for use at different airports. When power goes OFF both directions are free.
SWEEPER-AL
| Unit dimensions (HxLxW), mm | 200x2662x1010 | |
| Glass leaves height, mm | 880/1500/1800 | |
| Passage width, mm | 550 | 900 |
| Crossing capacity in single access mode, person/min | 18 | 12 |
| Crossing capacity in free access mode, person/min | 60 | |
| Opening/Closing, sec | 1,2 | 1,8 |
| Mechanism | Servo-driven (Motorized) | |
| Standard housing | Brushed AISI 304 | |
| Available housing | Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated RAL | |
| Top lid | Solid glass top | |
| Voltage | from the AC (100–240) V, 50/60 Hz from a DC source 12 V | |
| Maximum power consumption, W/pass | 310 | |
| MCBF, cycles | 1 500 000 | |
| Enclosure rating | IP41 | |
| Temperature range, °С | +1 / +40 | |
