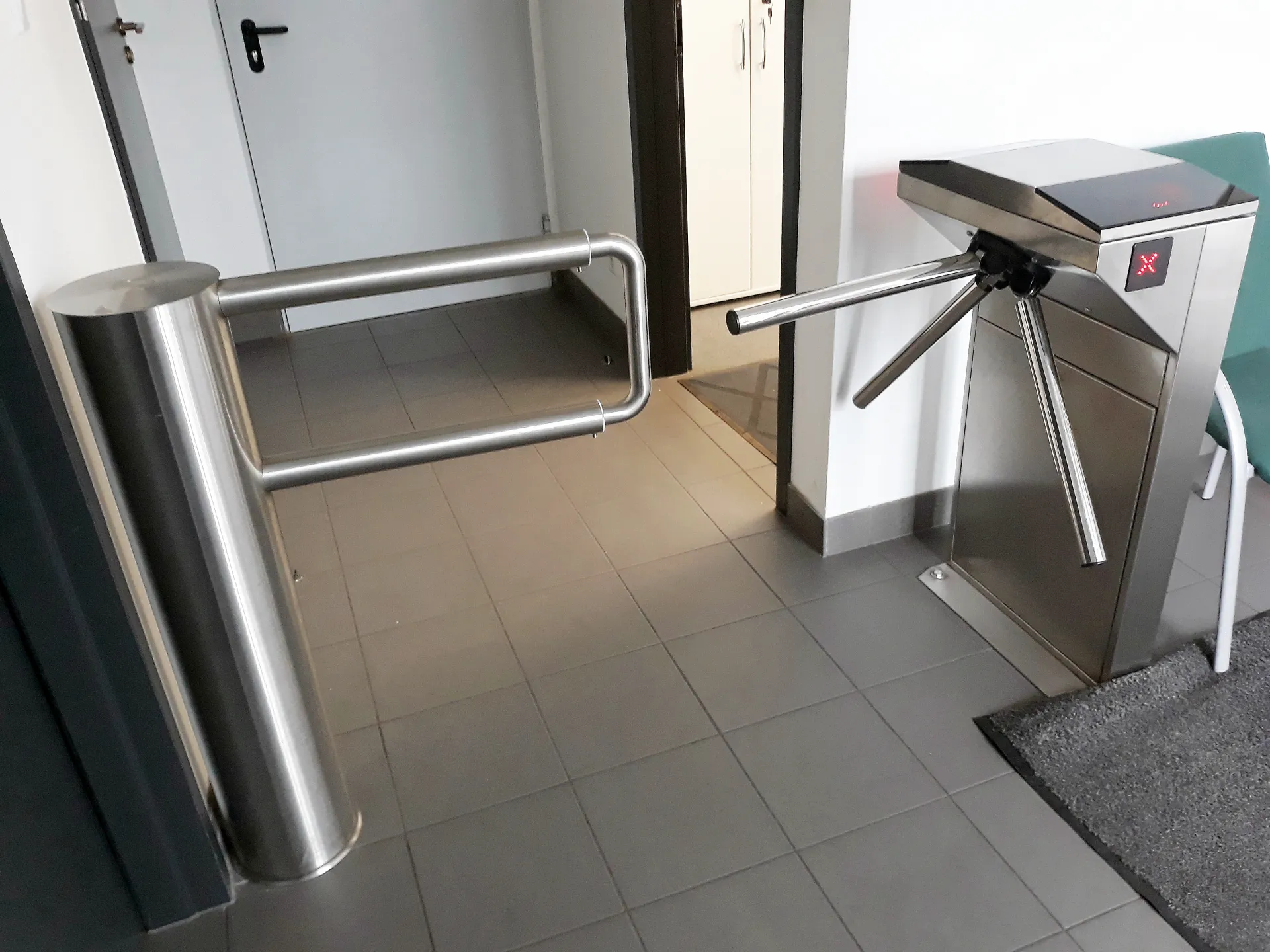

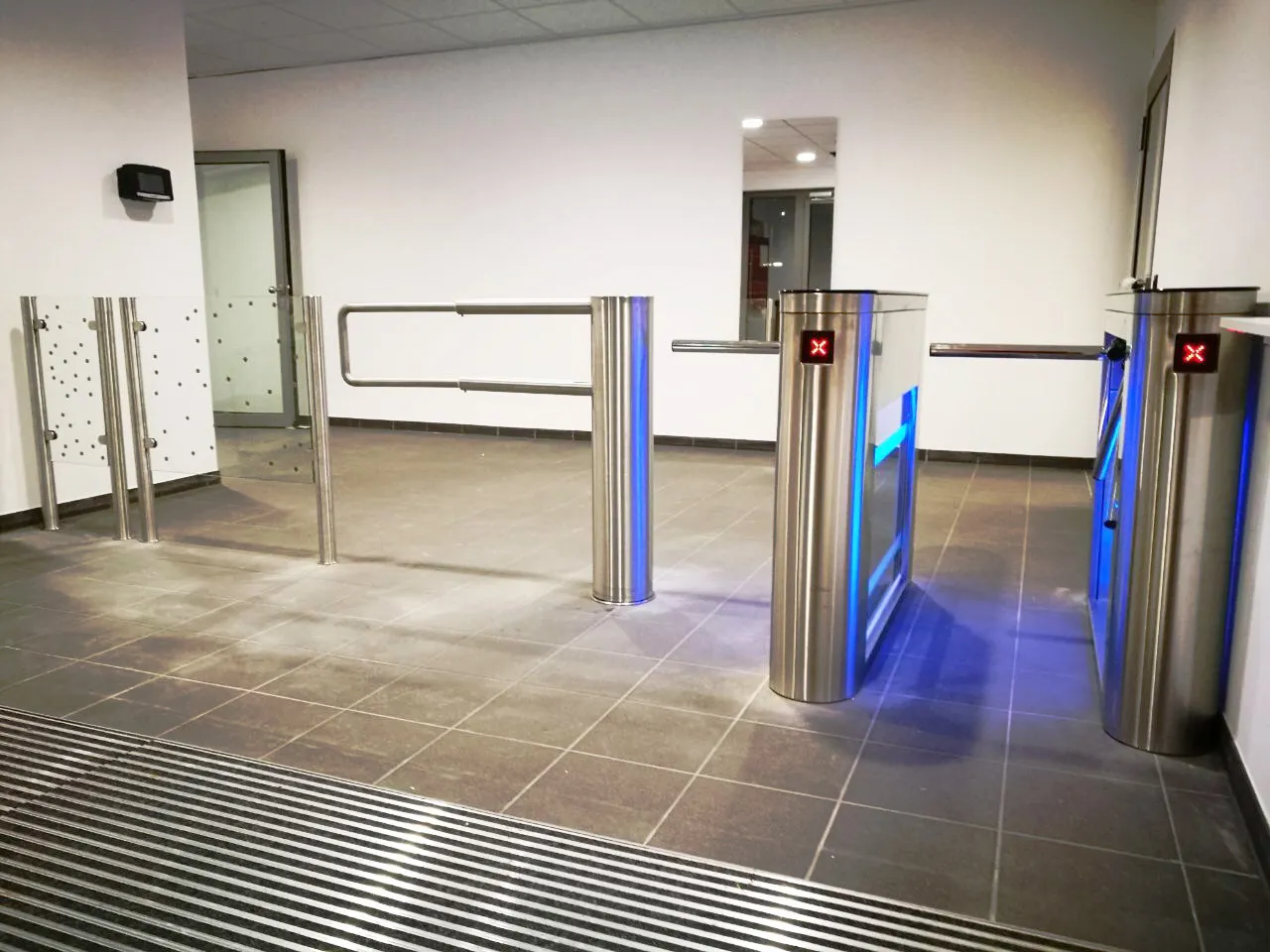

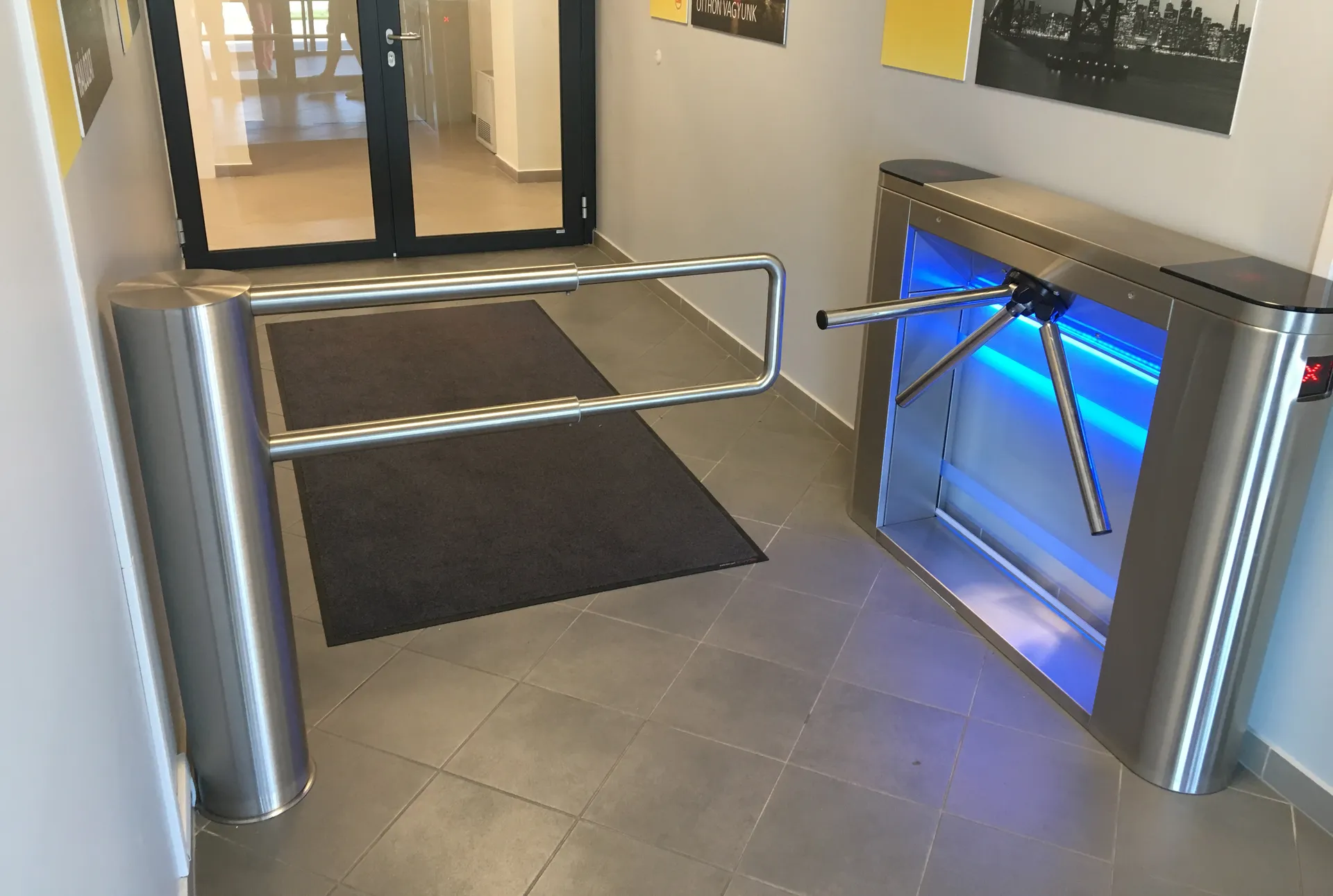

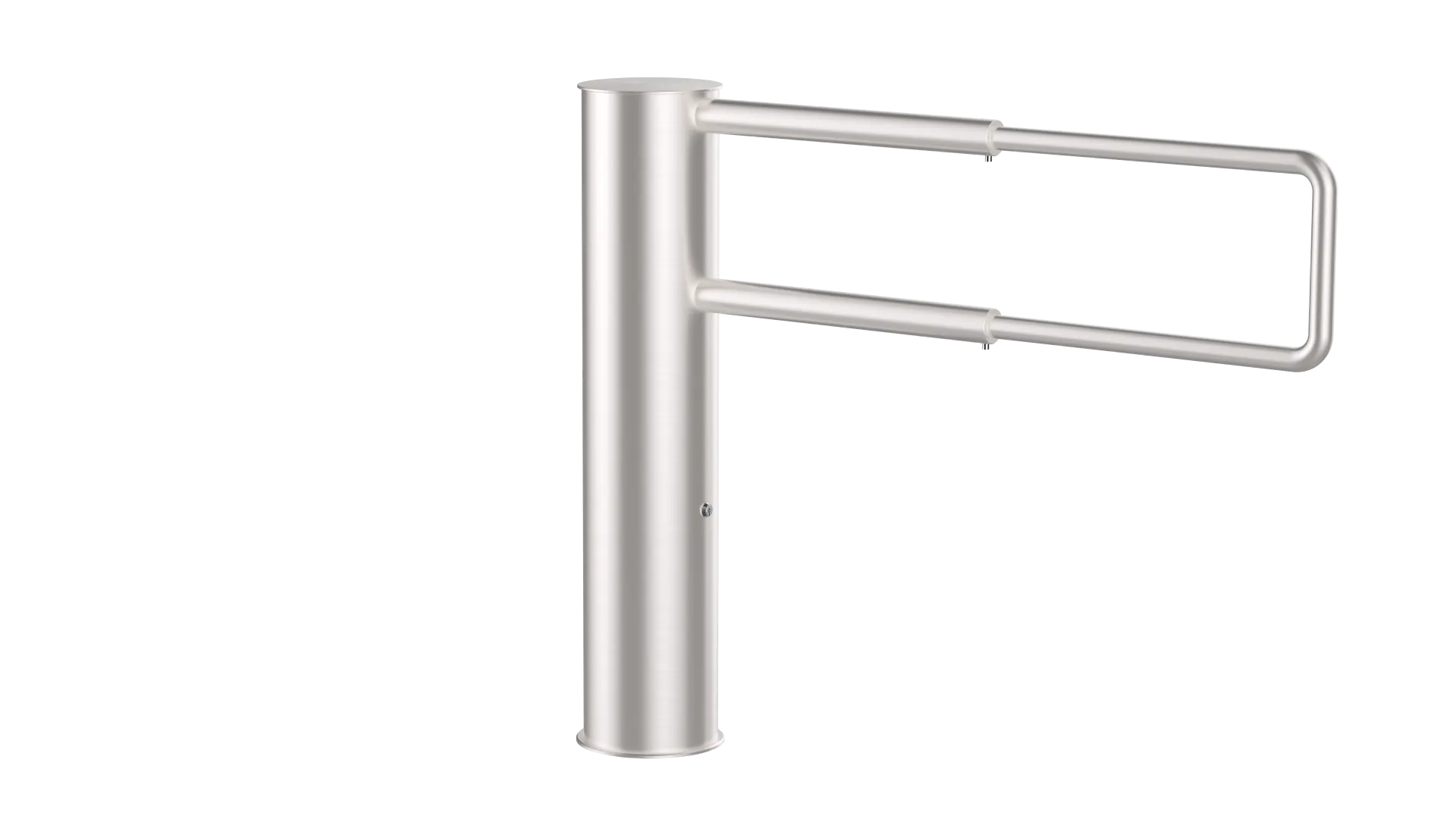

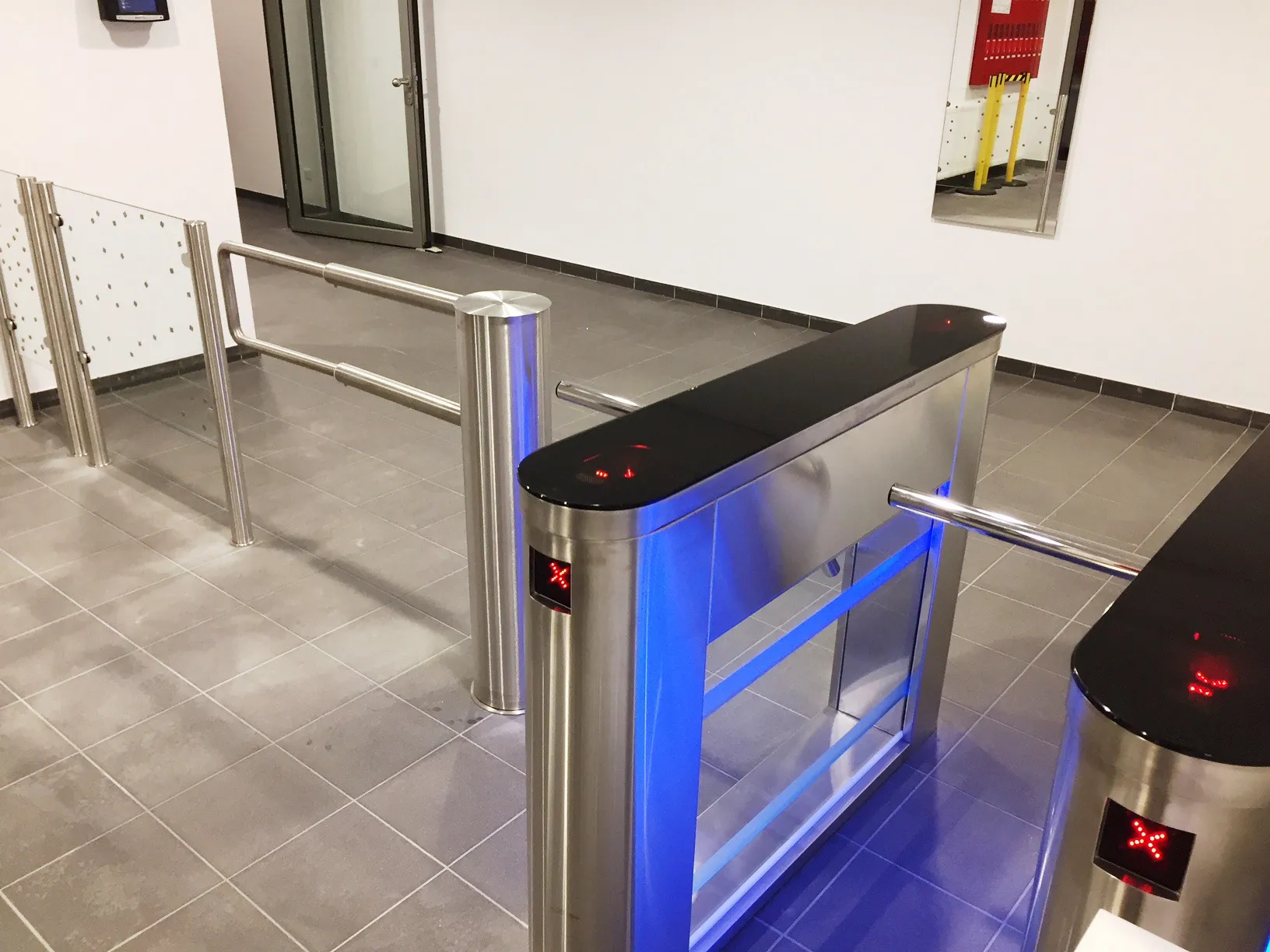

Mechanical Gate-STE with electromagnetic lock is effective entrance solution to control one-way pedestrian traffic. Telescopic tubular leaf can be up to 1000 mm wide that makes it ideal for a site where entrance space is not indicated.The gate is equipped with electromagnetic lock that blocks gate in closed position. To enter in the access permitted direction you have to push the gate. Once the passage is complete, the leaf automatically returns by spring closer to the start position.Fail-safe operation (free open upon power loss) makes this gate possible to use as an emergancy exit. Gate-STE is operated by the remote control panel (included in standard set). Gate-STE can be integrated with any access control system if required.Advantages:Easy installation.Available in CW and CCW (right or left opening).Closing spring.Remote control panel included in standard set.Any access control system can be integrated.Mechanical swing gate with electromagnetic lock that blocks gate in closed position.Adjustable tube makes Gate-STE appropriative for areas where passage width is unknown in advance.Solution for disabled and trolley access.Appropriative addition to other TiSO turnstiles.Steadfast housing suitable for high traffic areas.Can be mounted on a mobile platform (TiSO Frame-M).
GATE-STE
| Unit width, mm | 865-1215 | |
| Unit diameter, mm | 225 | |
| Unit height, mm | 1000 | |
| Passage width, mm | 700-1050 | |
| Angle of leaf rotation, ° | 90 | |
| Mechanism | Mechanical with electromagne | |
| Standard housing | Brushed SS AISI 304 | |
| Available housing | Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated RAL | |
| Protective level | IP41-54 *** | |
| Voltage | from the AC - (100-240)V, 50/60Hz from a DC source - 12V | |
| Maximum power consumption, W per pass | 60 | |
| Temperature range, °С | +1 / +40 | |
| * optionally, the model can be ordered with a tubular leaf of fixed width of 600 or 850mm. ** depends on the design of the turnstile and the leaf width at order *** first figure is standard, all other available upon request | ||
