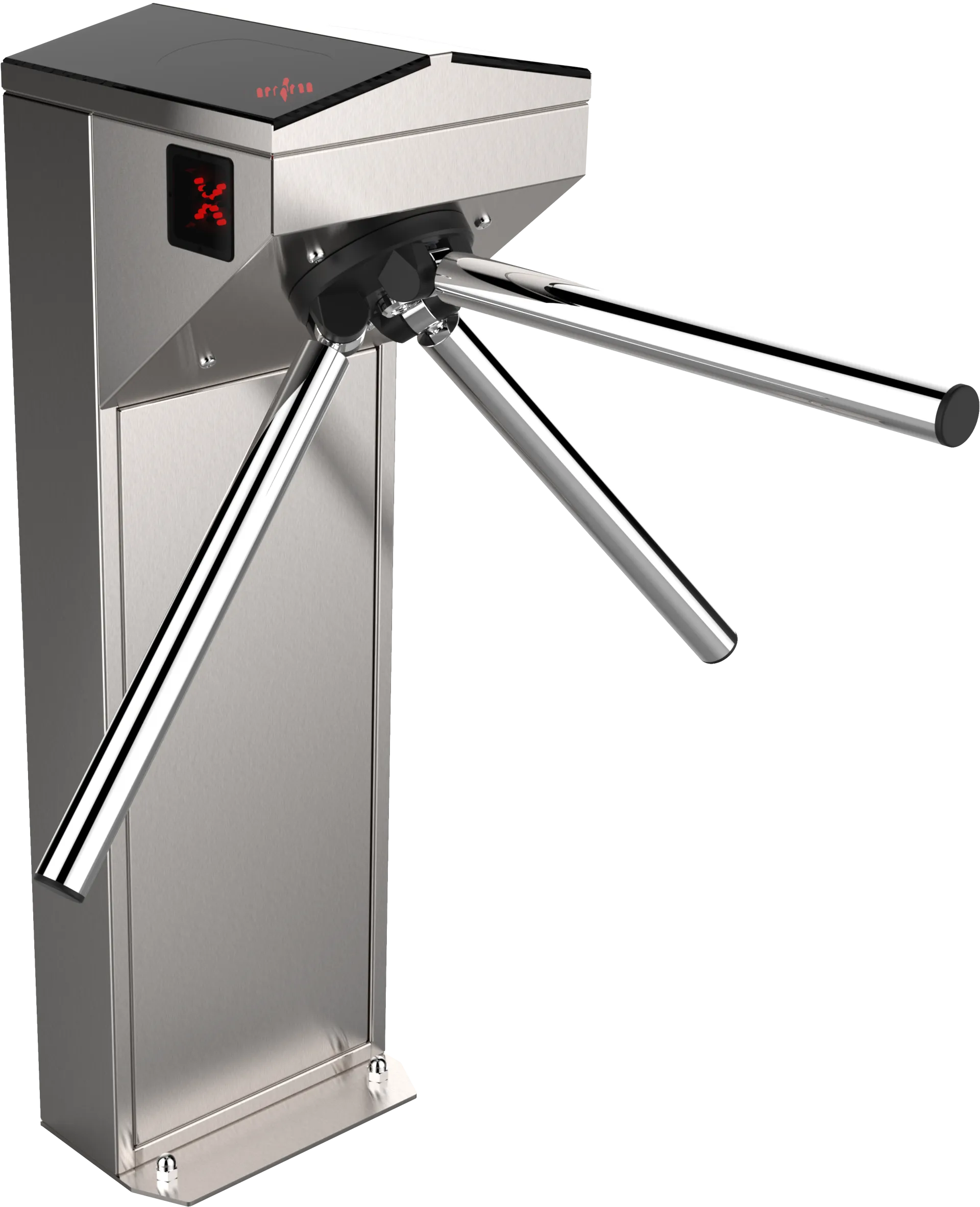

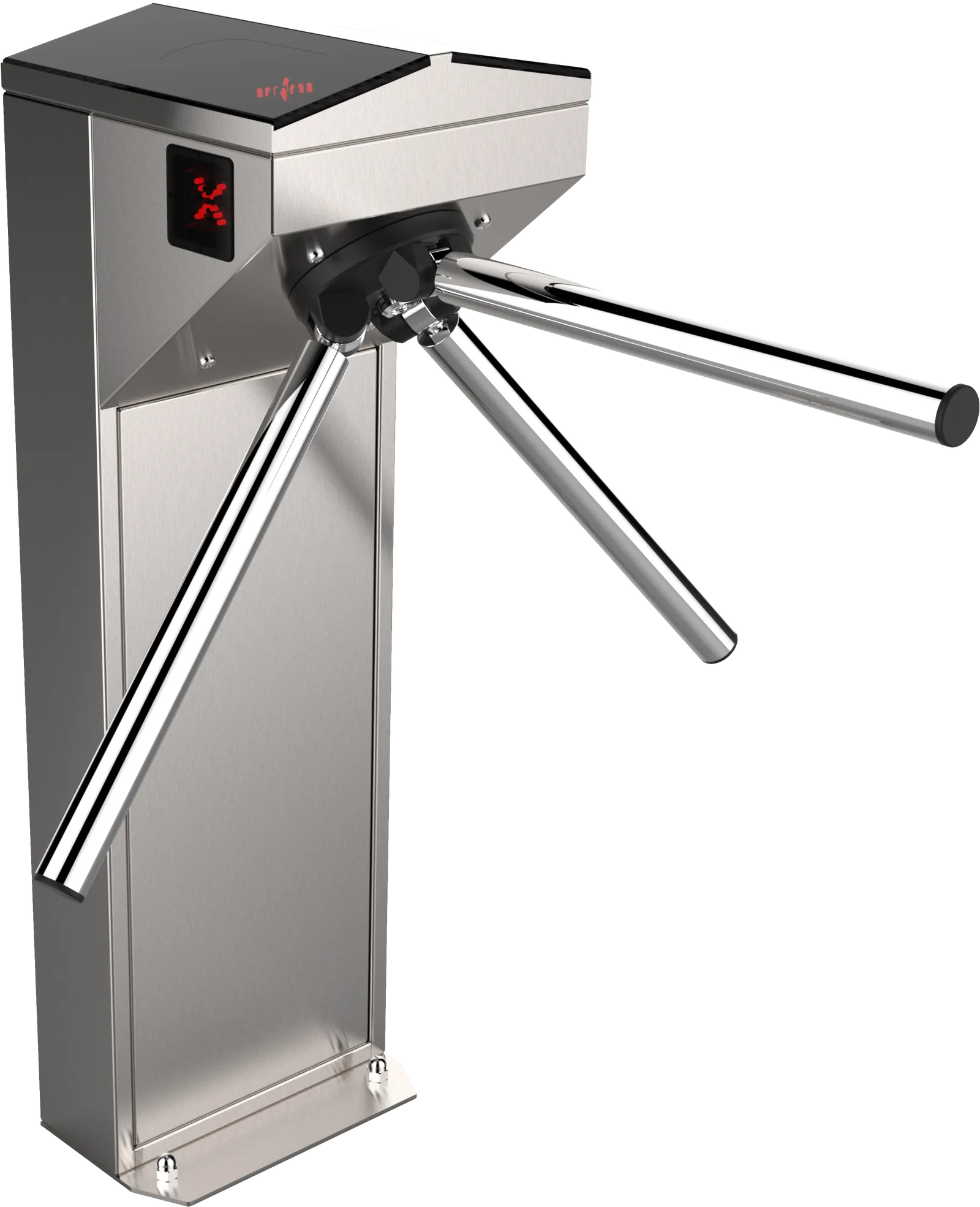

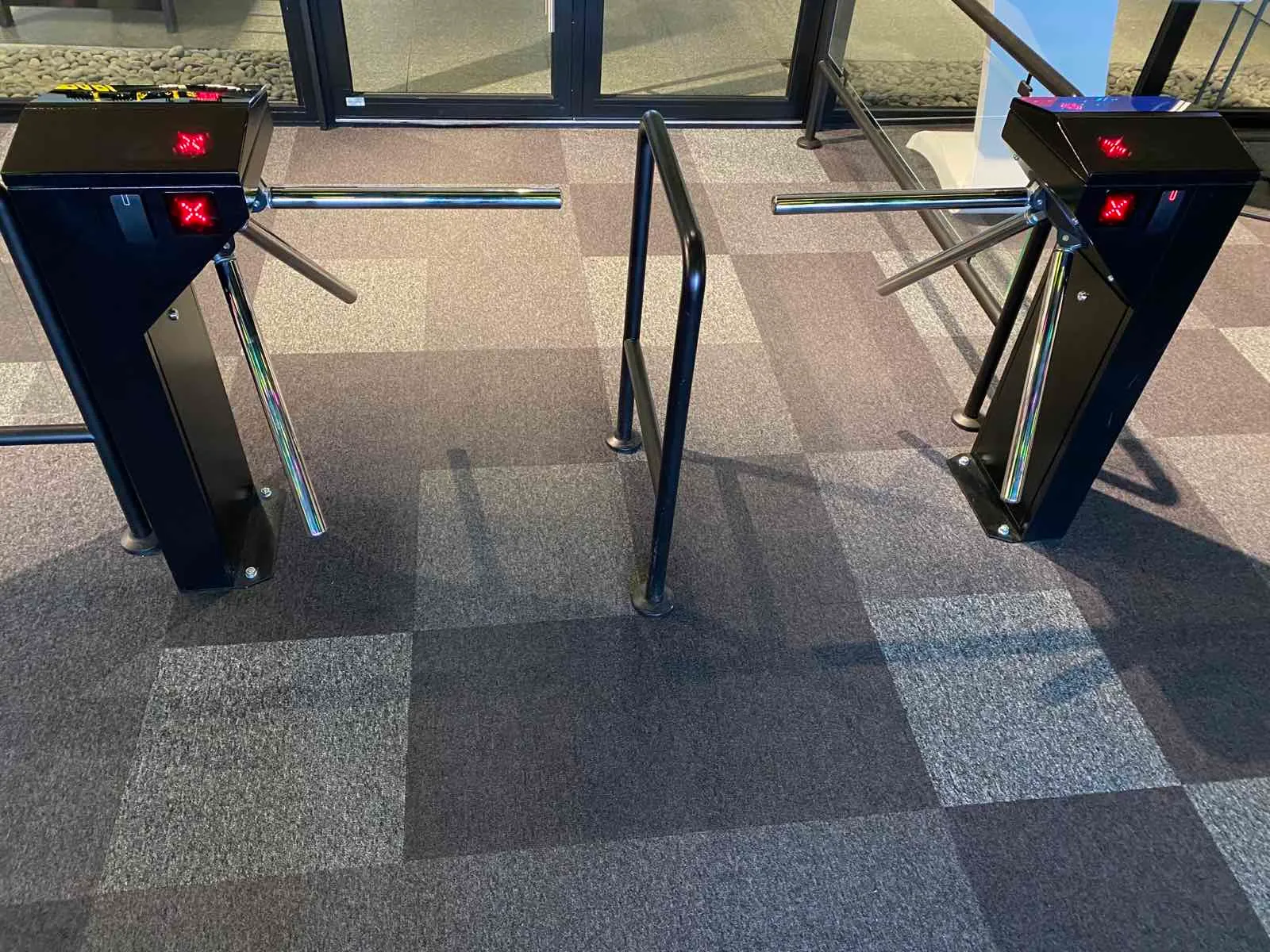

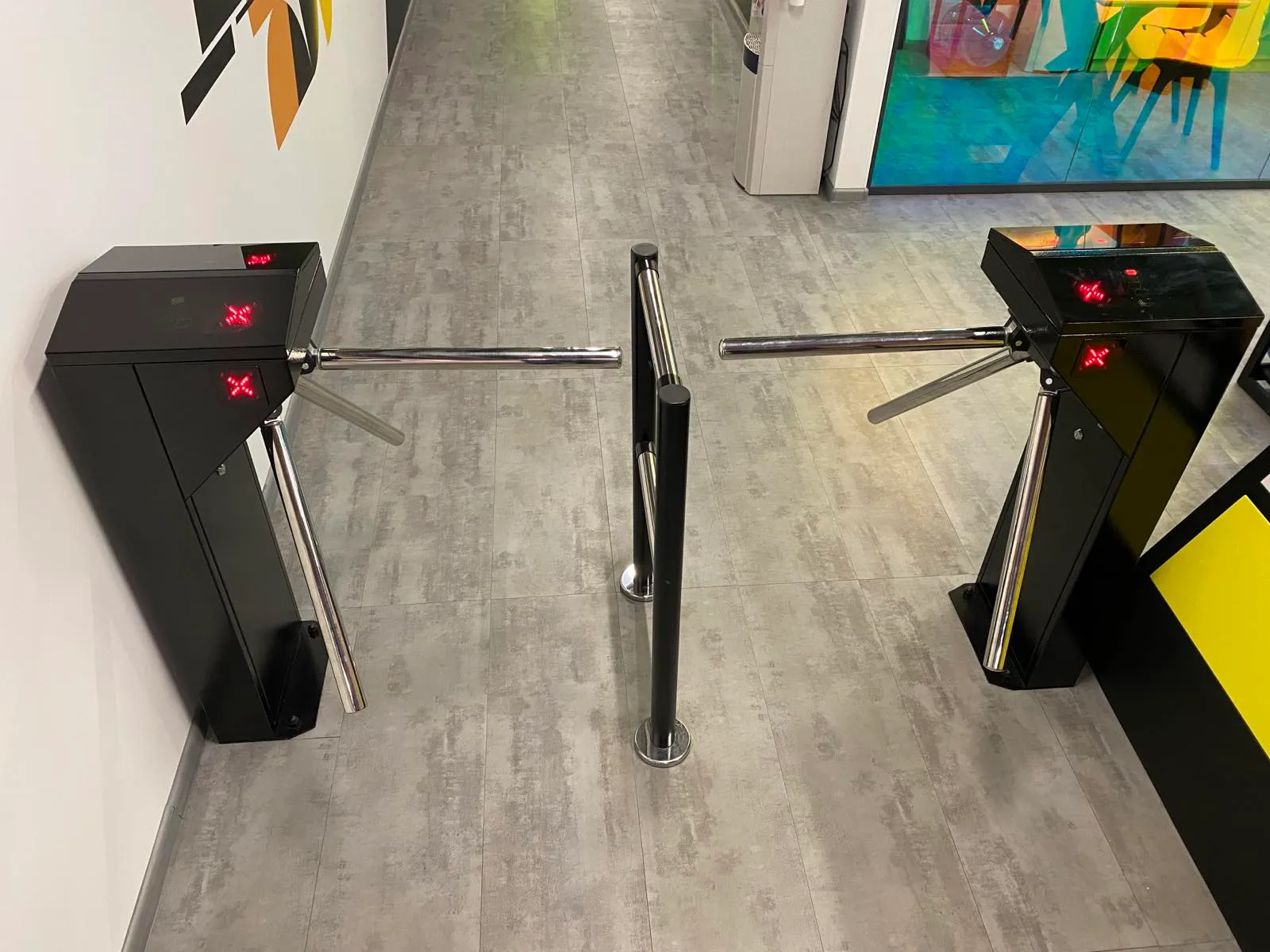

Centurion-M is tripod turnstile gate which has a new mechanism Triservo-M. A brushed or polished stainless steel finish will suit any interior (powder coated version available). Those turnstiles take minimum space and give maximum efficiency, the fast responding motor and quick operation will eliminate crowding at the entrance. The drop arm function efficiently enables free passage in case of emergency. The enclosure design of Centurion M turnstile means it is suitable for outdoor installation without an additional canopy or extensive alterations.Advantages:Bi-directional motorized tripod turnstile with panic / bar drop function;High quality at a cost effective price;Integration with any type of access control and ID systems;Low power consumption;Panic / bar drop function with automatic reset;Whisper quiet, low noise operation;Optional indoor or outdoor housing types;Wide range of accessories;Availability of a back-up battery connection;Complete supply set as a standard.
CENTURION - M
| Model | Centurion - M | |
| Unit dimensions (HxLxW), mm | 1000x793x847 | |
| Crossing capacity in free access mode, person/min | 60 | |
| Crossing capacity in single access mode, person/min | 25 | |
| Passage width, mm | 600 | |
| Mechanism | Servo-driven (Triservo-M) | |
| Blocking mechanism | Two electromechanical stop catches (separate locking system) | |
| Emergency mode (when power goes off) | Arm drops when power goes off | |
| Drop arm function | Drop arm function can be activated when power is on Drop arm function activates automatically when power goes off | |
| Fail safe | + (drop arm) | |
| Standard housing | Brushed SS AISI 304 | |

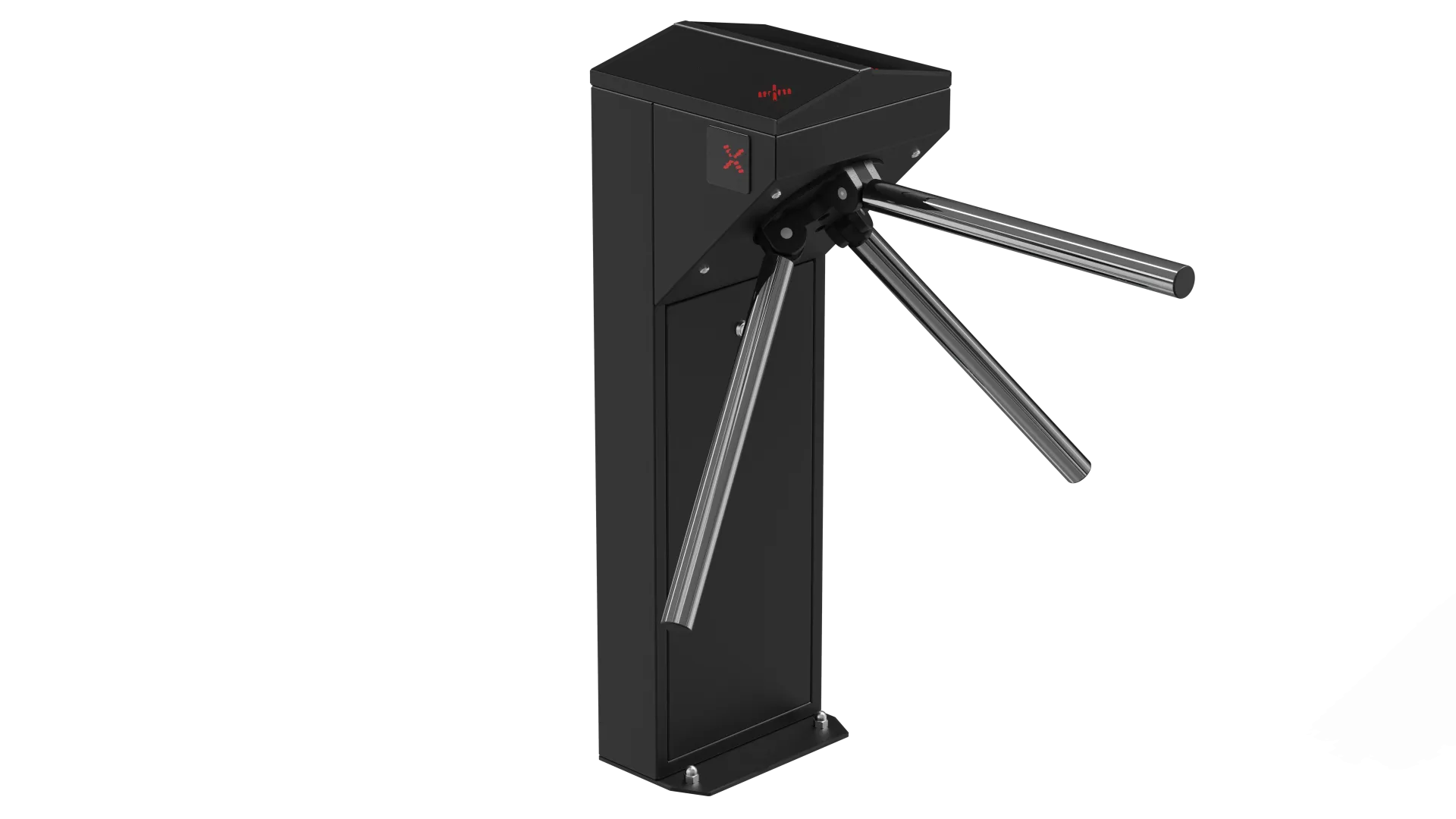

| Available housing | Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated (any RAL up on request) | |
| Voltage | AC (100-240)V, 50/60Hz; DC source 12 V | |
| Maximum power consumption | 55 W | |
| Enclosure rating | IP 41 – 54 * | |
| MCBF, cycles | 1 500 000 | |
| * first figure is standard, all other available upon request. | ||
