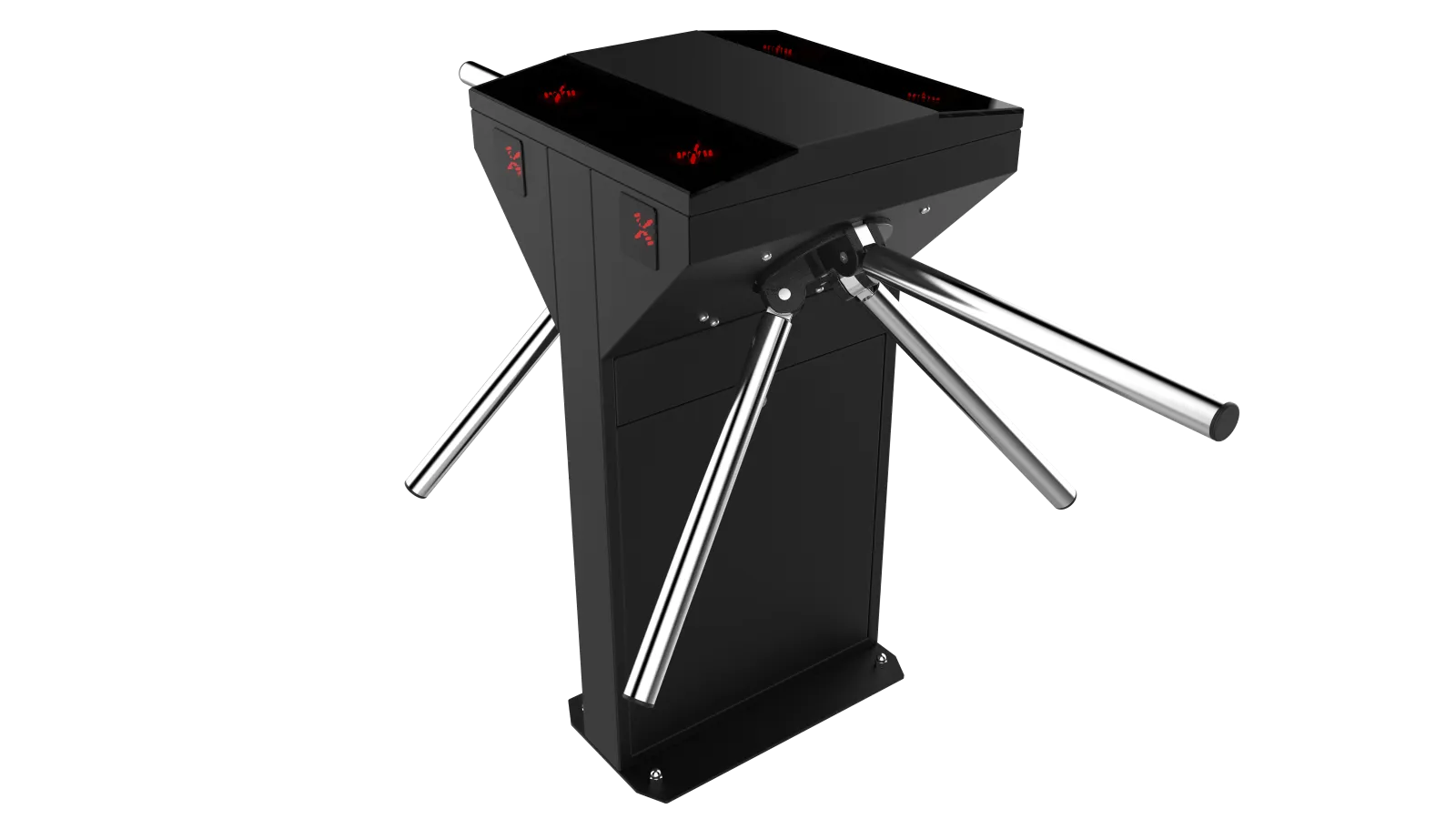

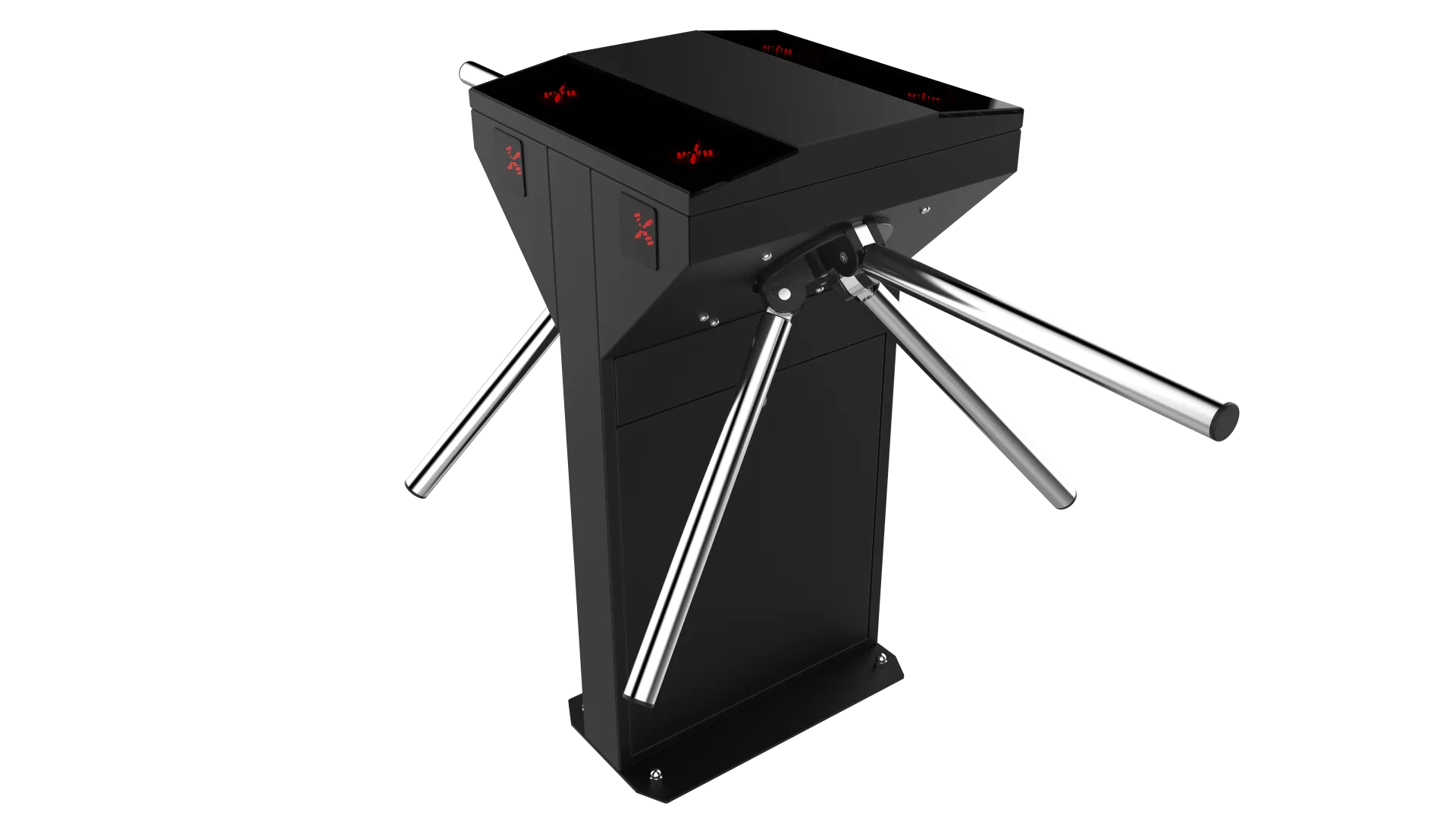

Bastion-M Twin is one leg base tripod turnstile gate. Bastion M Twin tripod access system has a new mechanism Triservo-M and a double LED indication. Enlarged housing allows getting extra strength and robust benefits which keep pedestrian traffics of high intensity.Advantages:Bi-directional motorized tripod turnstile with panic / bar drop function;High quality at a cost effective price;Integration with any type of access control and ID systems;Low power consumption;Panic / bar drop function with automatic reset;Whisper quiet, low noise operation;Optional indoor or outdoor housing types;Wide range of accessories;Availability of a back-up battery connection;Complete supply set as a standard.
BASTION - M TWIN
| Model | Bastion - М Twin | |
| Unit dimensions (HxLxW), mm | 1000x793x1530 | |
| Crossing capacity in free access mode, person/min | 120 | |
| Crossing capacity in single access mode, person/min | 50 | |
| Passage width, mm | 600 (each pass) | |
| Mechanism | Servo-driven (Triservo-M) | |
| Blocking mechanism | Two electromechanical stop catches (separate locking system) | |
| Emergency mode (when power goes off) | Arm drops when power goes off | |
| Drop arm function | Drop arm function can be activated when power is on Drop arm function activates automatically when power goes off | |
| Fail safe | + (drop arm) | |
| Standard housing | Brushed SS AISI 304 | |
| Available housing | Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated (any RAL up on request) | |
| Voltage | AC (100-240)V, 50/60Hz; DC source 12 V | |
| Maximum power consumption | 55 W | |
| Enclosure rating | IP 41 – 54 * | |
| MCBF, cycles | 1 500 000 | |
| * first figure is standard, all other available upon request. | ||
