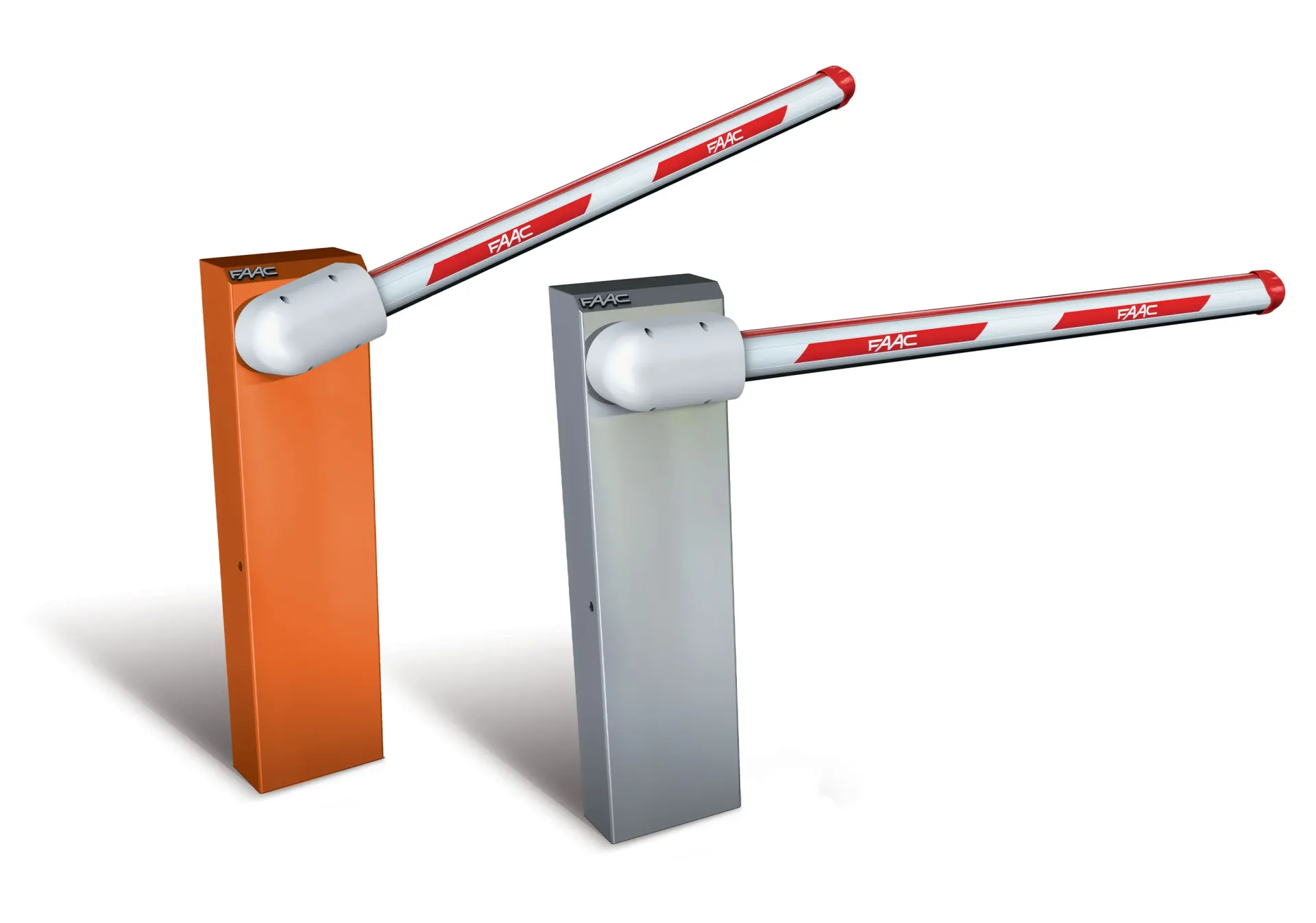

Automatic boom barrier FAAC 615BPR
Category: Barriers
IP44
protection
Cost
Price on Request
-Hydraulic operator with opening and closing lock.
-Ideal for medium transit frequency and for controlling small and medium private areas.
-Standard version equipped with limit switches and anti-crushing hydraulic safety device
Technical Specifications
| Model | 615BPR Standard Orange RAL 2004 | 615BPR Standard Grey RAL 9006 | 615BPR Rapid |
|---|---|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz | ||
| Electric motor | Asynchronous single phase | ||
| Motor rotation speed | 1.400 rpm (*) | 2.800 rpm (*) | |
| Max. power | 220 W | ||
| Max. torque | 0 ÷ 400 Nm (*) | 0 ÷ 300 Nm (*) | |
| Motor-pump unit capacity | 1,5 lpm (*) | 3 lpm (*) | |
| Material type | Steel | ||
| Type of treatment | 100 micron protective primer + polyester painting RAL 2004 – RAL 9006 | 100 micron zinc epoxy galvanisation + polyester painting RAL 2004 | |
| Encoder | No – anti-crushing hydraulic safety device | ||
| Type of deceleration | Electronic – Adjustable | ||
| Type of beam | Rectangular – Rectangular with skirt – Articulated – Round with lights | Rectangular – Rectangular with skirt – Rectangular articulated – Round | |
| Operating ambient temperature | -20°C ÷ +55°C | ||
| Thermal protection | 120°C | ||
| Cooling | – | ||
| Protection class | IP44 | ||
| Weight | 34 Kg | ||
| Type of oil | FAAC HP OIL | ||
| Dimensions (LxDxH) | 270 x 140 x 1015 mm | ||
| Beam max length | 5 m | 2.5 m | |
| Opening time | 5,7 s (90°) | 3 s (90°) | |
| Use frequency | 50% | 40% | |
| Electronic equipment | 615BPR incorporated | ||
