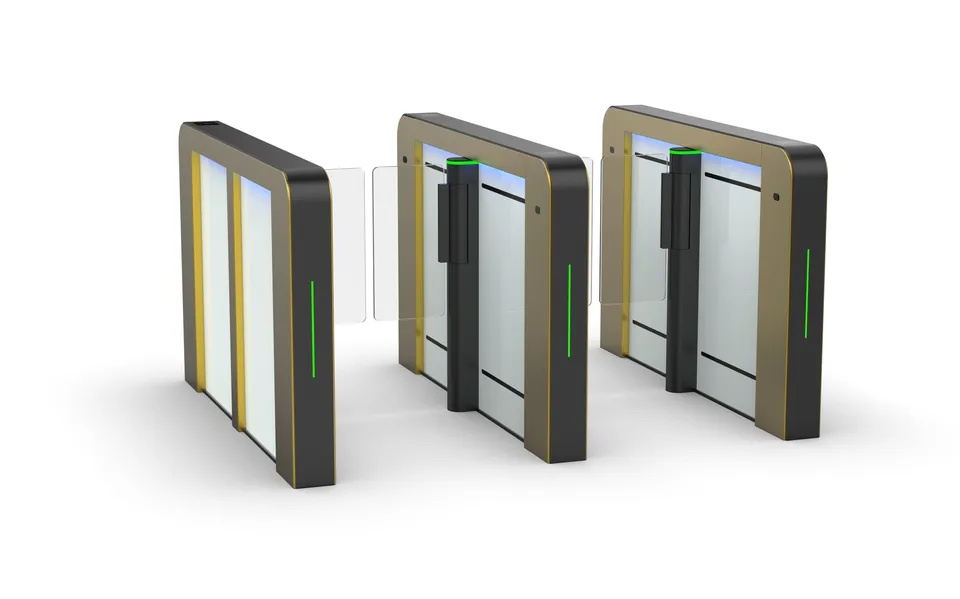

A speed gate is an optical turnstile with wings that open in 0.3–1.8 s and let a person through almost without stopping. Infrared sensors in the cabinets detect two people passing on one card and movement in the wrong direction. Unlike a tripod, it closes the lane with glass, acrylic or steel wings rather than arms.

How to choose speed gates

  • Passage width. Standard is 500–550 mm on TiSO and from 600 mm on Sablex. For trolleys, luggage and wheelchairs: 900 mm, 1000 mm on the Sweeper-S, up to 1200 mm on the Sweeper-HGW and Sablex Lumina.
  • Wing height. Tall glass wings on the HG, HGW, S-HG and SH series (up to 1800 mm from the floor on the Sweeper-HG) prevent jumping over or passing items across.
  • Wing type. Swing wings on the Sweeper range and the Sablex Lumina, Ultra and Elite. Retractable on the Jetpan (upwards) and SpeedBlade (out of the cabinet, telescopic on the 900).
  • Cabinet width. The Sweeper-S, S-HG and SH have a 110 mm cabinet, so a narrow entrance fits more lanes; the Jetpan and SpeedBlade 290 mm.
  • Speed and flow. The Sweeper, Sweeper-M and Sweeper-WP open in 0.3 s on a 550 mm lane. The Sweeper-AL passes 18 people/min in single access mode and 60 in free mode.
  • Operating conditions. The Sweeper, Sweeper-S, Sweeper-HG and Sweeper-AL are rated for +1…+40 °C. For outdoor use, choose the Sweeper-WP with IP54.
  • Power failure. On the Sweeper-HGW, Jetpan and Sweeper-WP the wings can be opened by hand (fail-safe).

Model comparison

  • Sweeper — glass top and side panels, 550 or 900 mm passage, opens in 0.3/0.6 s, MCBF 10,000,000 cycles.
  • Sweeper-S, Sweeper-S-HG, Sweeper-SH — 110 mm cabinet, MCBF 10,000,000; 550 or 1000 mm passage on the S, 550 or 900 mm with tall wings on the S-HG and SH.
  • Sweeper-HG and Sweeper-HGW — tall glass wings. HG: 550 or 900 mm passage in 0.7/0.9 s; HGW: 1200 mm passage, 20 people/min, MCBF 5 million.
  • Sweeper-AL — modular airport line: 880, 1500 or 1800 mm wings, single or multiple lanes, MCBF 1.5 million.
  • Sweeper-WP — outdoor: IP54, steel wings, −45 to +45 °C per the manufacturer, 550 or 900 mm passage.
  • Sweeper-M — media panels with 65,500 LEDs for a logo, 550 or 900 mm passage.
  • Jetpan and SpeedBlade — retractable glass wings: Jetpan 500 mm in 0.7 s, SpeedBlade 550–600 mm in 0.5 s or 900 mm.
  • Sablex Apex, Core X, Lumina, Ultra, Elite — control via relay output; 600–900 mm passage on the Ultra and Elite, 600–1200 mm on the Lumina.

Where they are used

Speed gates suit the lobbies of business centres, banks and hotels. The Sweeper-AL is built for airport terminals, the Sablex Elite for airports, offices and stadiums. The Sweeper-WP works outdoors: at railway and bus stations and on the coast.

Installation and service

Since 2013, Stop Control has provided turnkey design, supply, installation and service across Ukraine with its own crews. An engineer calculates lane throughput for your visitor flow. We offer warranty and post-warranty service and keep spare parts in stock.

FAQ

How much does a speed gate cost?

Each model's price is listed on its page, and we quote the installed cost of the line for your site. It depends on passage width, wings and the number of lanes.

Can a speed gate be installed outdoors?

Yes, but only a model designed for it: the Sweeper-WP with IP54. The Sweeper, Sweeper-S and Sweeper-HG are rated for +1…+40 °C, so we agree conditions per site.

How do strollers or luggage get through?

Through a wide 900–1200 mm lane, which can be combined with narrow lanes in one line.
