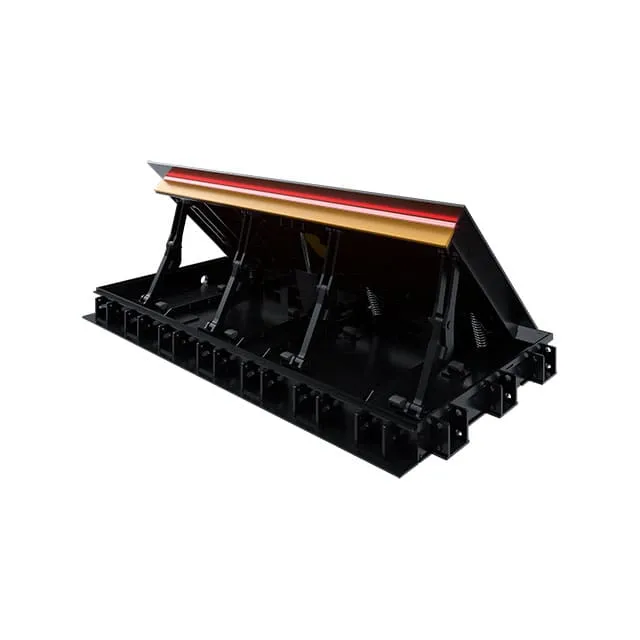

Anti-ram road blocker (7.5t@80kph)
Category: Anti-ram road blockers
Cost
843 676 ₴ Price without Discount: 888 080 ₴
Price does not include installation and delivery.
Ultra shallow road blockers were designed to protect the perimeter. This road blocker can stop truck of 7 500 kg (7,5 t) mass driving at 80 kph (50 mph) speed. This is confirmed by successfully passed tests BSI PAS 68:2013 and IWA 14-1:2013. Such road blocker fully meets the requirements for the protection of highly classified objects. Being 950 mm height ultra shallow mounted road blocker (7,5t@80kph) has mounting depth of 200 mm.
Model Description
The completely innovative design of this lock allows you to combine its main anti-ram function with the simplicity and high speed of installation.
Technical Specifications
| Model | RB332-01 | RB333-01 | RB334-01 |
|---|---|---|---|
| Security class | BSI PAS68:2013 and IWA14-1:2013 (7,5t@80kph) | ||
| Installation type | Submersible | ||
| Drive | Hydraulic / External | ||
| Blocking width, mm | 2000 | 3000 | 4000 |
| Height, mm | 950 (± 20 mm) | ||
| Dimensions*, mm LxWxH | 1690x2170x200 | 1690x3170x200 | 1690x4170x200 |
| Power consumption. kW | 4 - 7,5 (depending on power hoses length) | ||
| Rising time, s | 3,5 (± 1s) / with EFO - 1,5s | ||
| Lowering time, s | 3,5 (± 1s) | ||
| Installation depth, mm | 200 | ||
| Maximum axle weight limit,** t | 15 t (by default), 30 t - 50 t (optional)** | ||
| Penetration resistance, kJ | 1 868 | ||
| Power supply | 3 phases 400 V, 50/60 Hz (standard) 1 phase 230 V, 50/60 Hz (option) | ||
| Protection level for road blocker | IP 67 | ||
| Protection level for control cabinet | IP 54 (by default), IP 65 (optional) | ||
| Temperature range, °C | -10 / +40 | ||
| Temperature range *** (option), °C | -40 / +65 | ||
| Material | Structural steel C22 | ||
| Coating | Epoxy Polyurethane RAL 9005 Black / RAL 1003 Yellow | ||
| * Technical features can be changed without prior notice. ** Drawings of foundation for 30 and 50 tons axle load to be provided upon request. *** For temperatures below -10 °C heating system to be used | |||
The table can be scrolled horizontally
