Mechanical Tire-Killers
- load: 15 t
TiSO mechanical Tire-Killers are an ideal solution for vehicle access control when a power supply is unavailable. TiSO offer two types of such devices: spring loaded or lever
Learn more

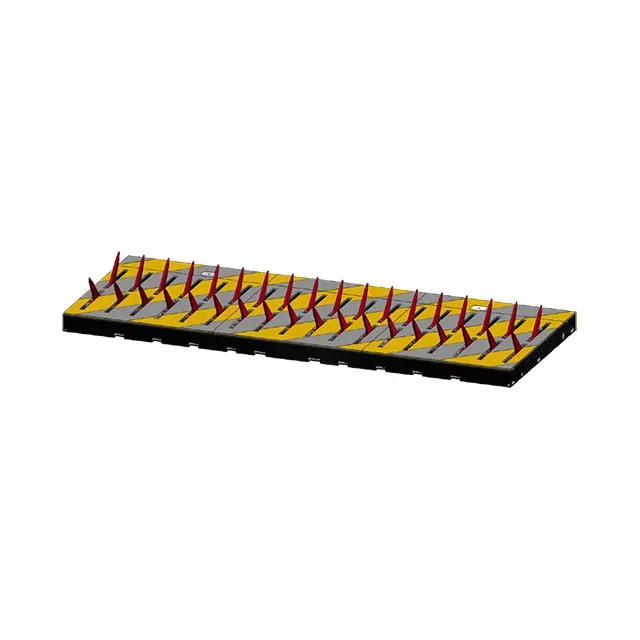

Automatic Tire-Killers
Category: Tire-killers
15 t
load
Cost
Price on Request
TiSO Automatic Tire-Killers are an economical and efficient solution for vehicle access control management. Available in a range of configurations this product can be surface mounted or within a shallow pit. Offering one or two directional driveway control and spikes of varied lengths. The diversity of options enables this traffic barrier to be widely applicable for a multitude of different applications.
Model Description
The built-in hydraulic unit makes this product suitable for installations in severe climate conditions, as well as for projects which require large distances (up to 100 m) between the PLC and the blocking segment.
Technical Specifications
| Model | RB370-02 | RB370-03 | RB370-04 | RB373-02 | RB373-03 | RB373-04 |
|---|---|---|---|---|---|---|
| Installation type | Shallow mounted / Above the ground (with ramps) | |||||
| Drive | Hydraulic | |||||
| Spikes direction | Bi-directional | One-directional | ||||
| Width, mm | 2000 | 3000 | 4000 | 2000 | 3000 | 4000 |
| Height, mm | 170 | |||||
| Load per axle, t | 15 | |||||
| Raising time (± 1 s) | 2,5 s | |||||
| Sinking time (± 1 s) | 1,5 s | |||||
| Operating temperature*, °C | -40 / +60 | |||||
| Power supply | 230 V, 50/60 Hz | |||||
| Power consumption, W | 660 | 330 | ||||
| Protection level | IP 67 for Tire-killer IP 55 for control box | |||||
| Materials | Structural steel C22 (powder coated) | |||||
| * for temperatures lower than -10 °C use the heating device for temperatures higher than +40 °C use the cooler device | ||||||
The table can be scrolled horizontally
Drawings and Dimensions
Video
Photo Gallery
Request a quote
Send a request — an engineer will select a configuration for your facility and send a proposal.
- A configuration matched to your throughput and operating mode
- A commercial proposal with prices for equipment and works
- Answers on installation and integration with your access control system
