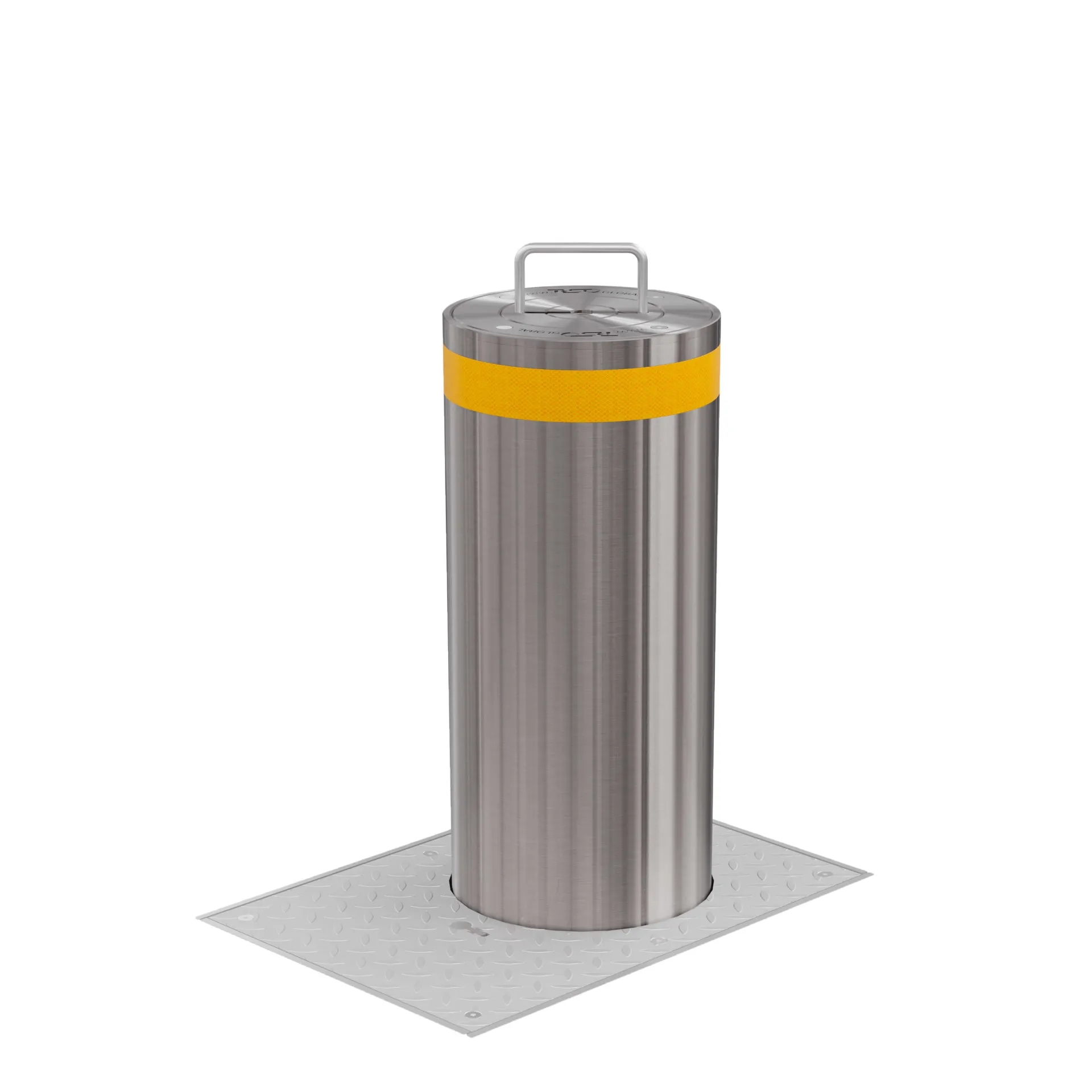

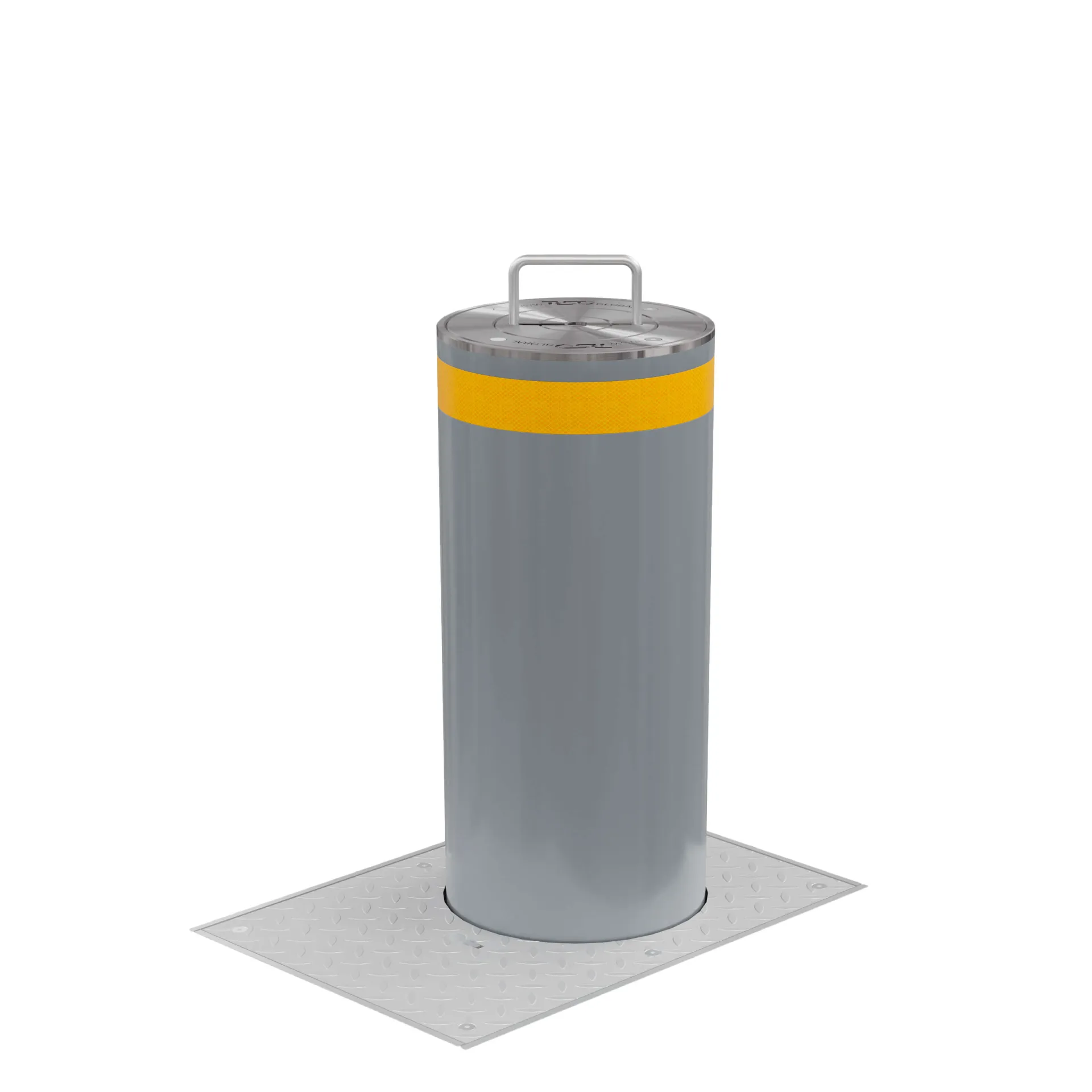

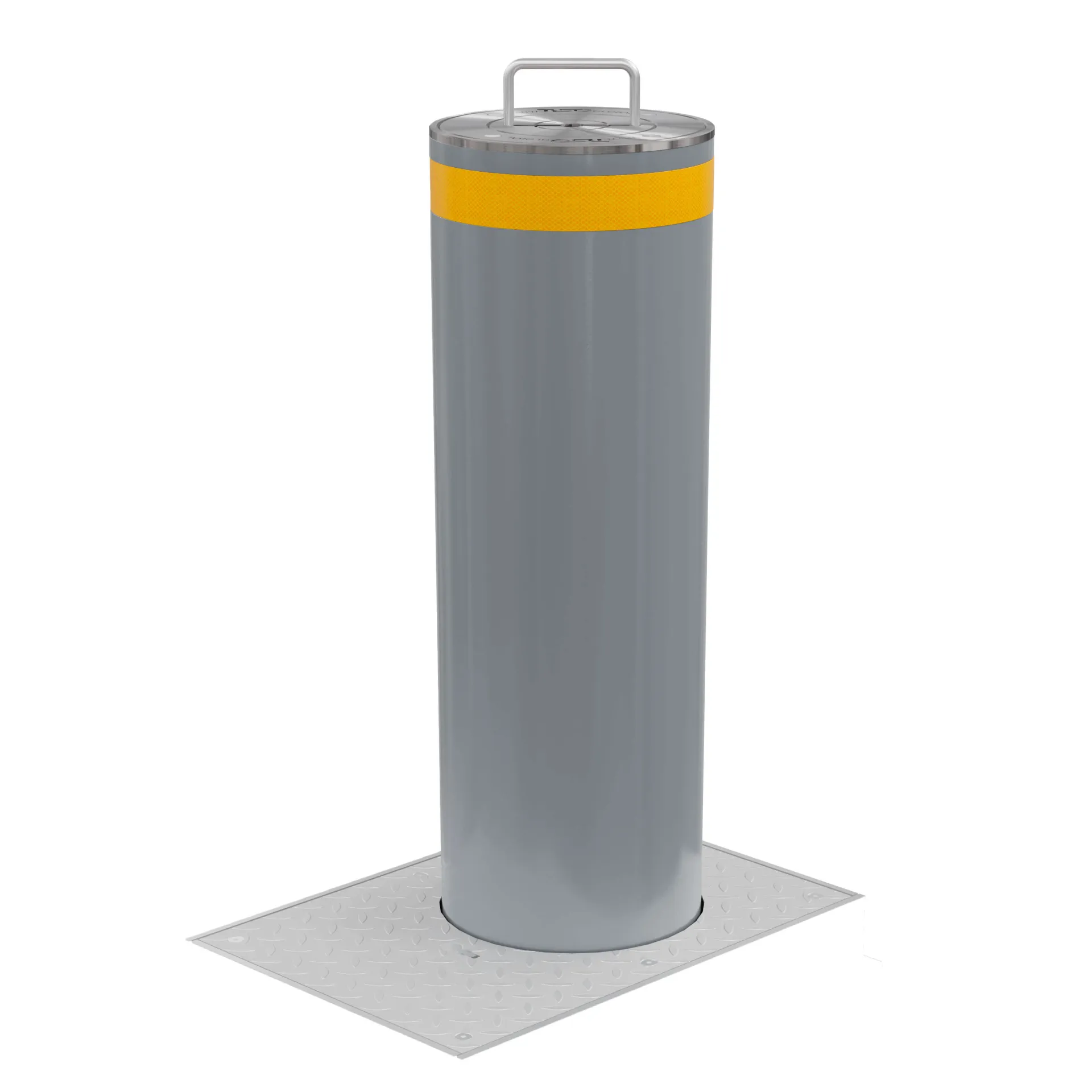

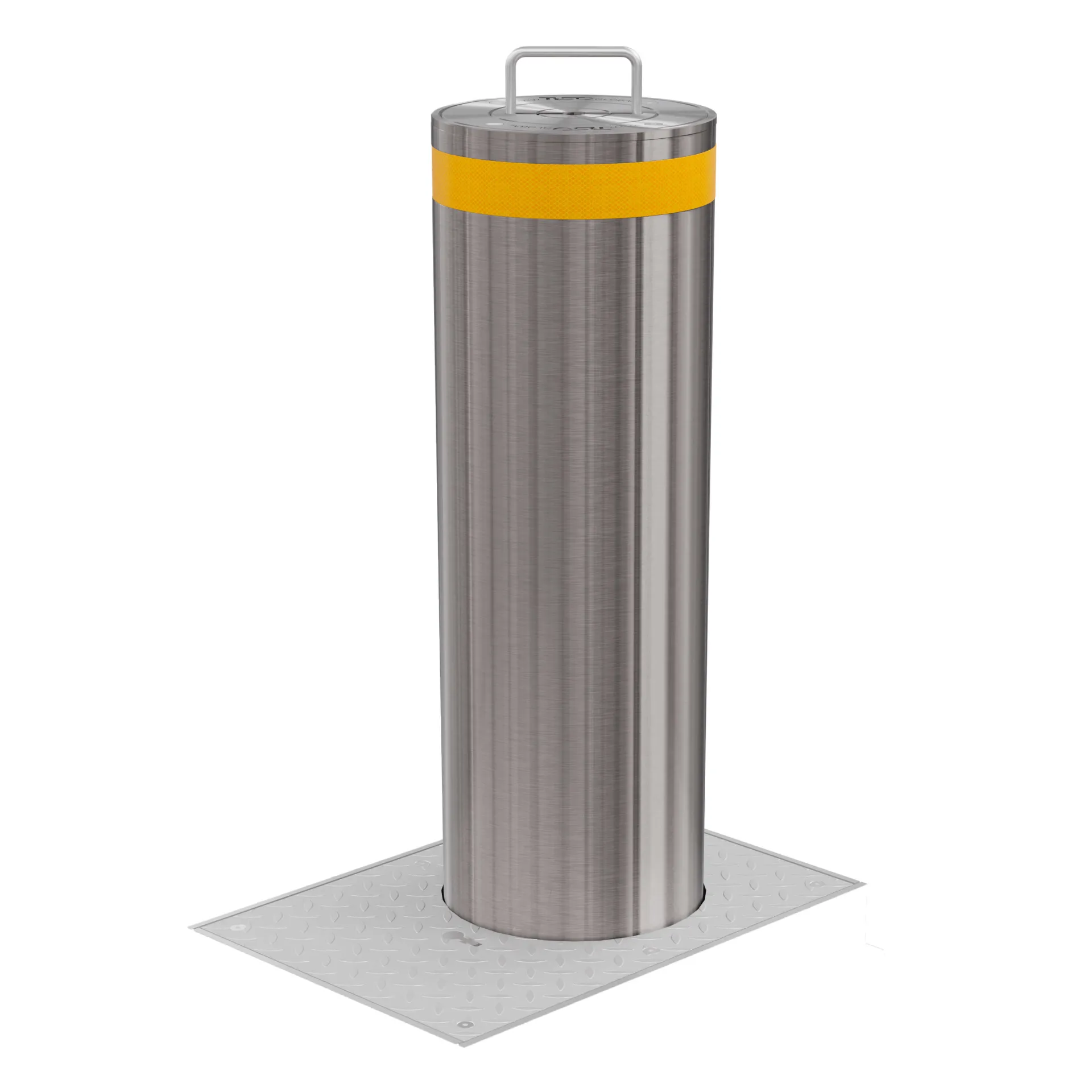

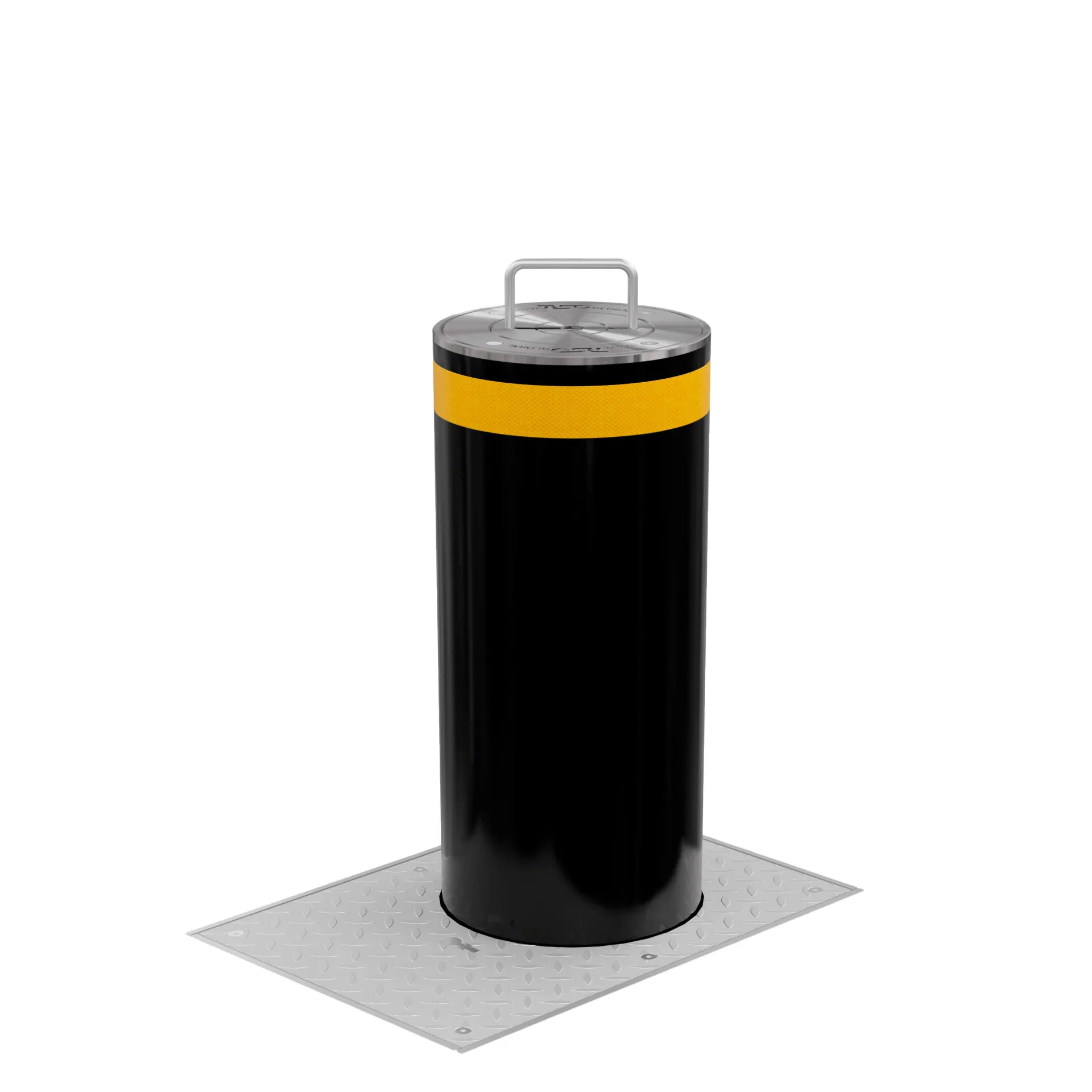

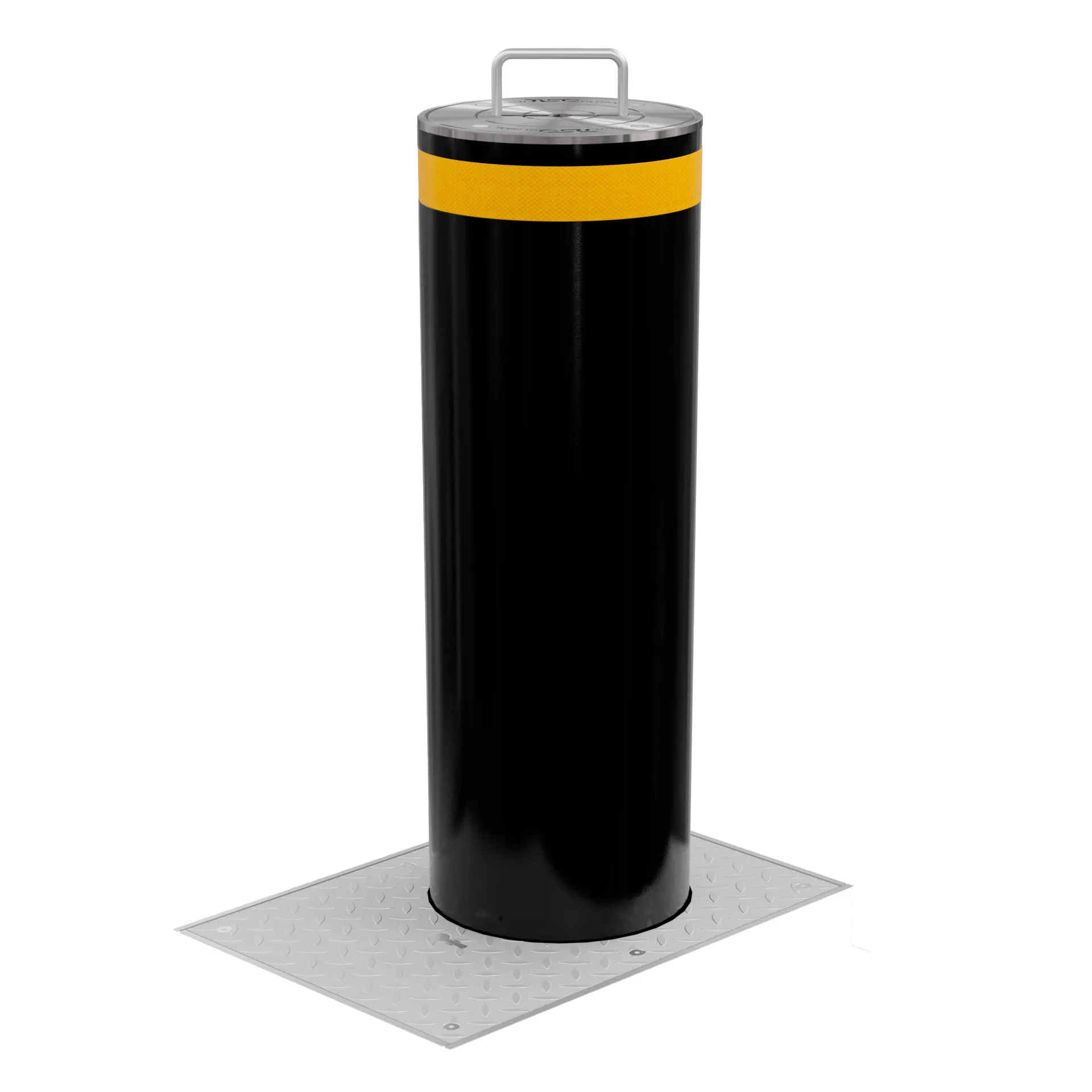

Removable bollard TISO RB345-62
Category: Removable bollards
Cost
Price on Request
TiSO traffic manually retractable bollards is generally used when access to vehicles is more frequent or if a power source is unavailable. As with the other TiSO bollards it is used as a static obstacle to secure pedestrian or other areas from unauthorized vehicle traffic. These bollards are a perfect solution for installations which require temporary free driveways during certain hours of a day/night.
Model Description
The bollard are locked / unlocked by a turn of a specially supplied key. The user-friendly handle at the top of the bollard enables easy and smooth manual rising and lowering. The other advantage is that these bollards do not require a power supply. TiSO range of manually retractable bollards are available in different dimensions, blocking heights, tube materials and diameters.
Technical Specifications
| Model | RB345-62 | RB345-51 | RB345-52 | RB345-65 | RB345-54 | RB345-55 |
|---|---|---|---|---|---|---|
| Installation type | submersible | |||||
| Type | manually / retractable | |||||
| Tube height, mm | 600 | 800 | ||||
| Tube diameter, mm | Ø 140 | Ø 219 | Ø 273 | Ø 140 | Ø 219 | Ø 273 |
| Wall thickness, mm | 4 | |||||
| Overall dimensions (HxLxW), mm lowered foundation anchors raised foundation anchors | 915х420х460 915x570x610 | 915х460х608 915x610x755 | 915х515х685 915x665x830 | 1115х420х460 1115x570x610 | 1115х460х608 1115x610x755 | 1115х515х685 1115x665x830 |
| Operation temperatures**, °C | -40/ +60 | |||||
| Retractable Tube | Const. steel / Stainless steel | |||||
| Tube coating (standard) | Corrosion-resistant coating +RAL | |||||
| *Technical data subject to change without notice. ** For temperatures lower than -10° C use the heating device / for temperatures higher than +40° C use the cooler device | ||||||
The table can be scrolled horizontally
