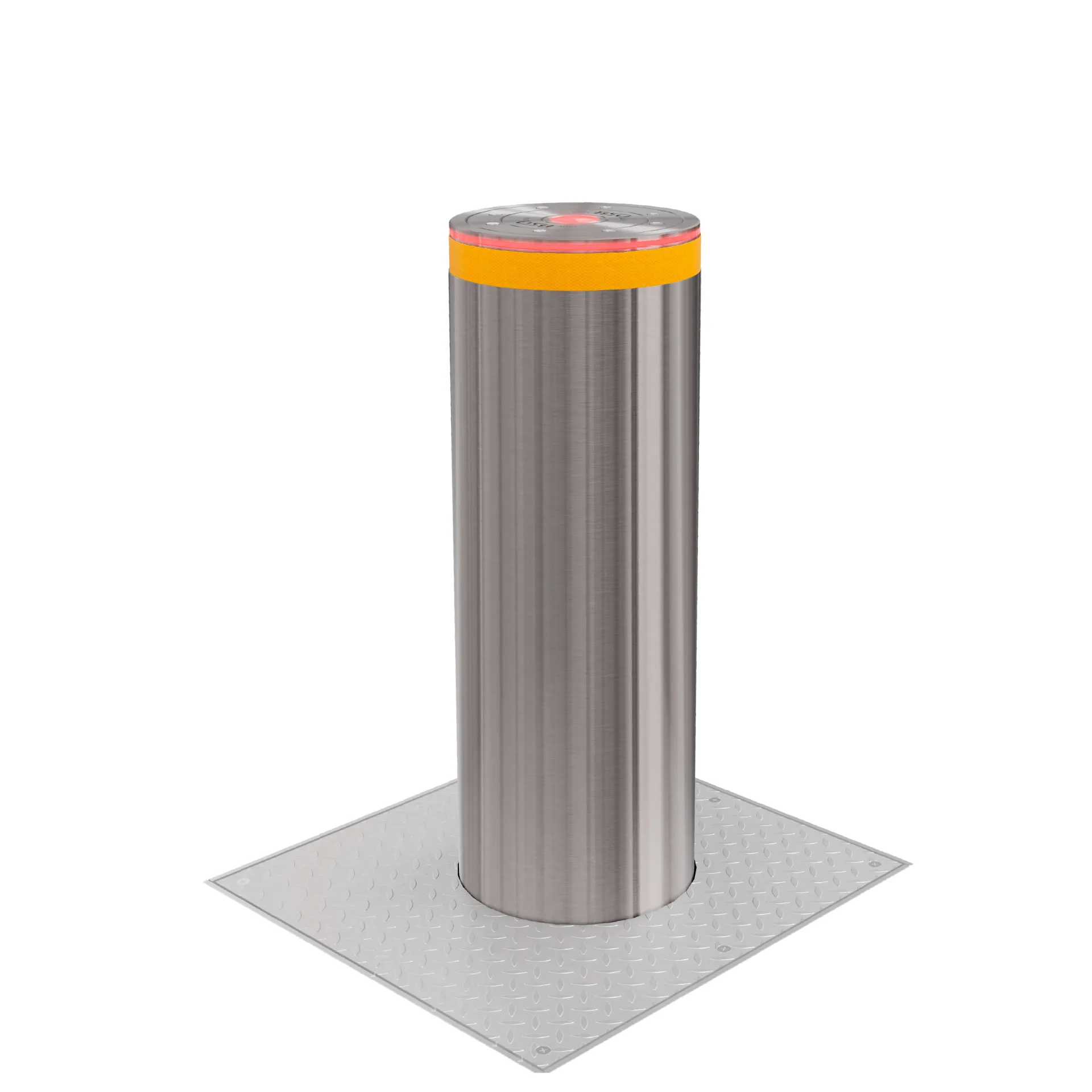

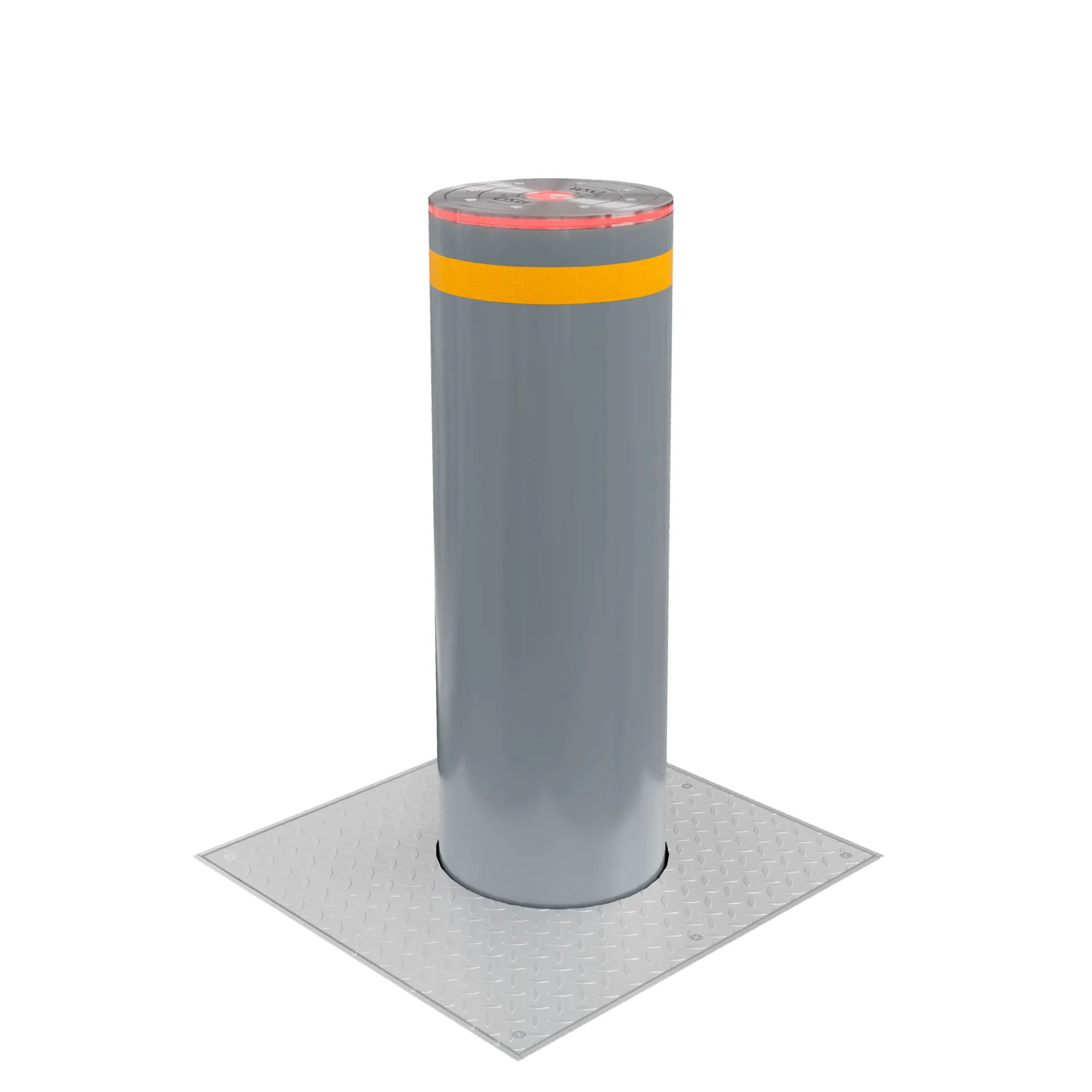

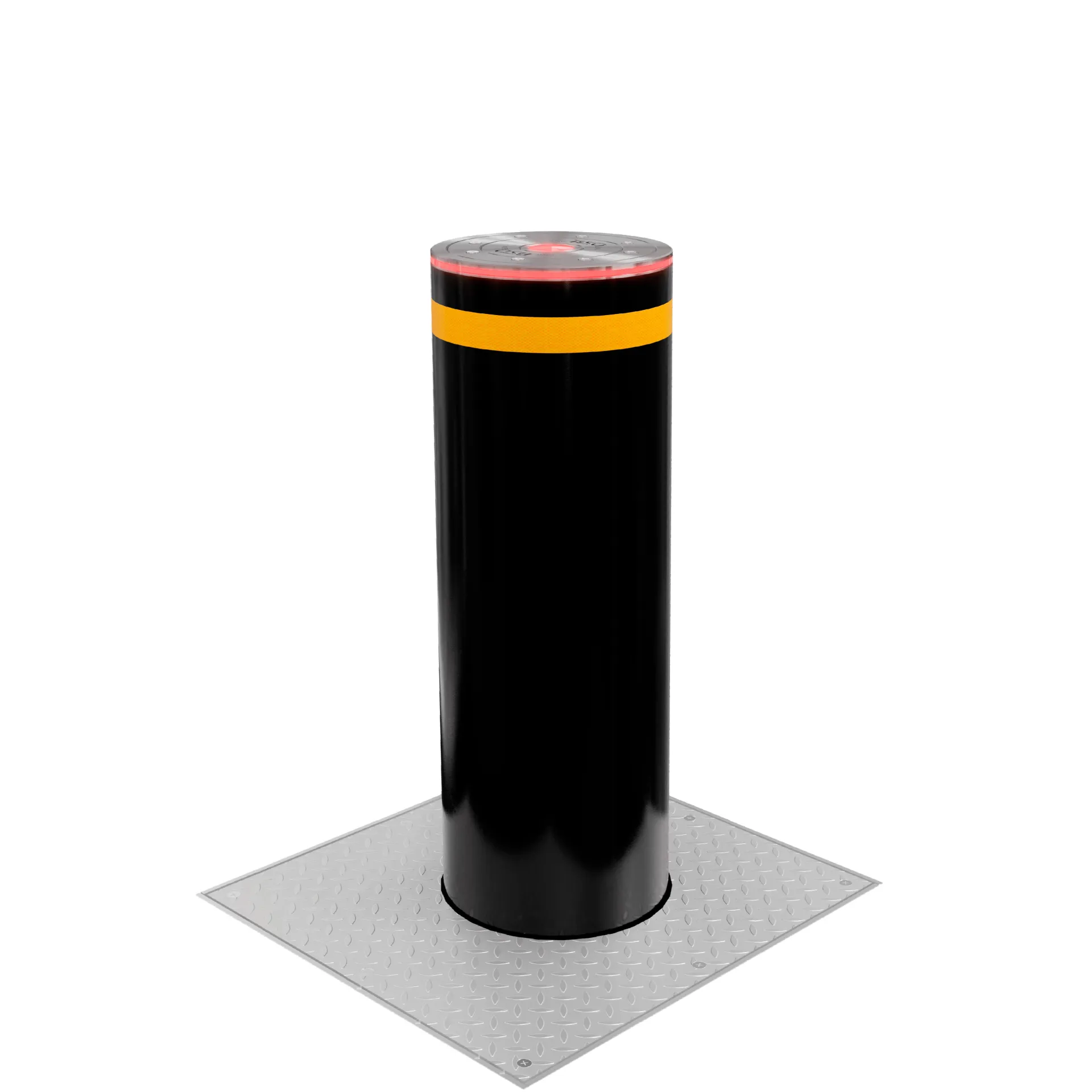

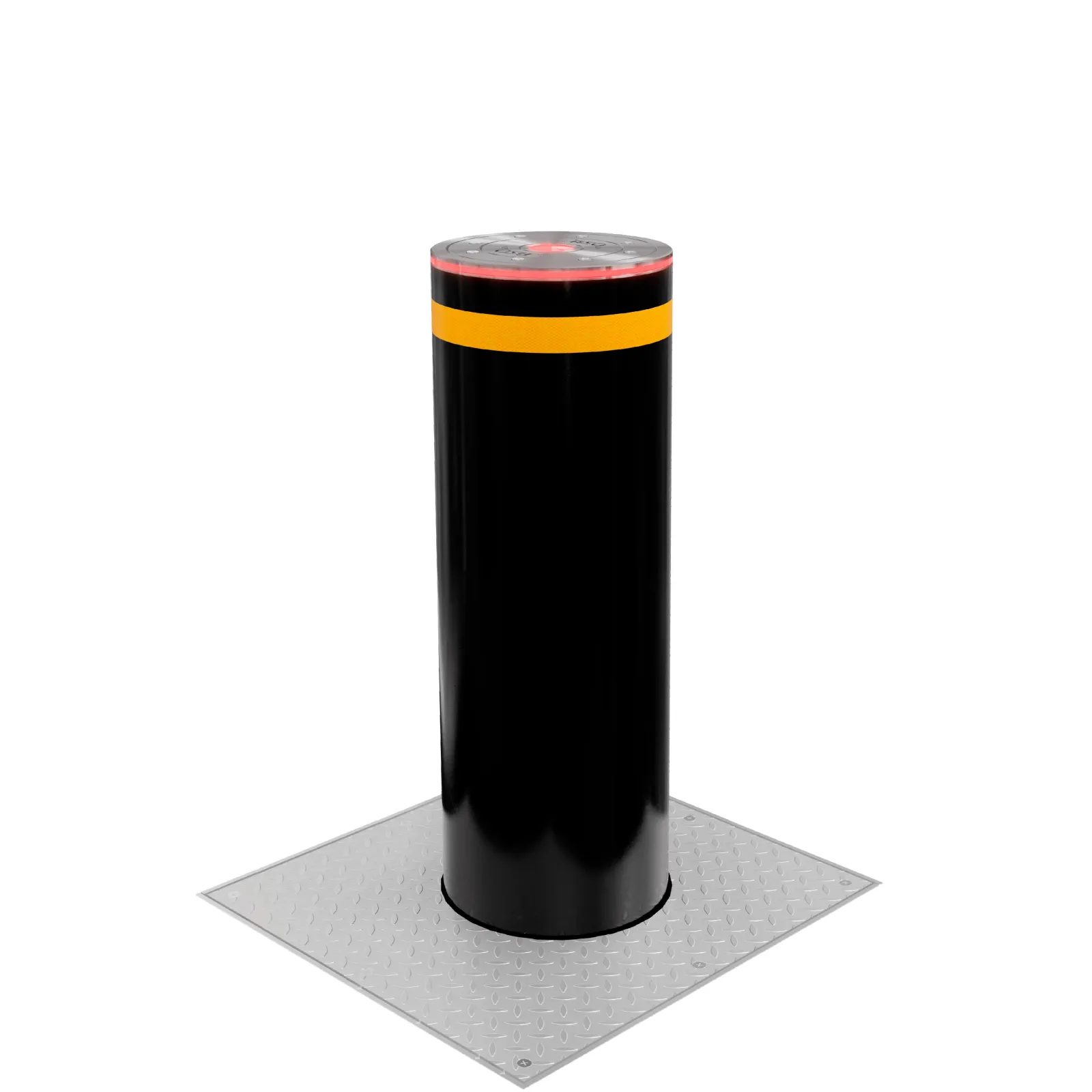

Automatic bollard TISO ASTM, M30
Category: Automatic bollards
15 t
load
Cost
Price on Request
TiSO M30 High security automatic bollards are designed to prevent unauthorized vehicles access to secure areas and to provide the highest level of antiterrorism protection. This type of equipment is installed at areas of high risk sites of heavy vehicle attack such as military infrastructures, government institutions, or public places (stadiums, fairgrounds) etc.
Model Description
High security bollards are installed in either single or multiple units with an external hydraulic station and PLC, connected via the hydraulic hoses. A separate push button control unit is supplied for manual control which is usually installed within the security office. This equipment can be easily integrated and interconnected with ACS and other vehicle access control equipment such as arm barriers.
Technical Specifications
| Model | RB348 |
|---|---|
| Technical Features*: | |
| Security class | ASTM F2656-07, M30, P1(-1.2m) |
| Installation type | Submersible |
| Actuator type / location | Hydraulic / external |
| Overall dimensions (LxWxH) | 780x830x1770 |
| Height of tube raising, mm | 1000 (± 20) |
| Rising speed, s | 4s ( ± 1s) |
| Lowering speed, s | 3,5 s ( ± 1s) |
| Power consumption, kW | 5,5 |
| Operation pressure, MPa | max 8 |
| Penetration resistance, kJ | 679,9 |
| Power supply | 400 V, 50/60 Hz |
| Tube diameter, mm | 325 |
| Wall thickness, mm | 20 |
| Retractable tube material | Steel 20 |
| Tube coating (standard) | Galvanized and powder coated tube (any RAL up on request) Stainless steel sleeve / casing up on request |
| Operating temperature**, °С | -40/+60 |
| Axle weight limit, t | 15 |
| Protection level - actuating device - control box | IP 67 IP54 |
| * Technical features can be changed without prior notice. **For temperatures below -10 °C heating system to be used / for temperatures above +40 °C cooling system to be used. At the temperatures above +40 ° C the use intensity is below average | |
The table can be scrolled horizontally
