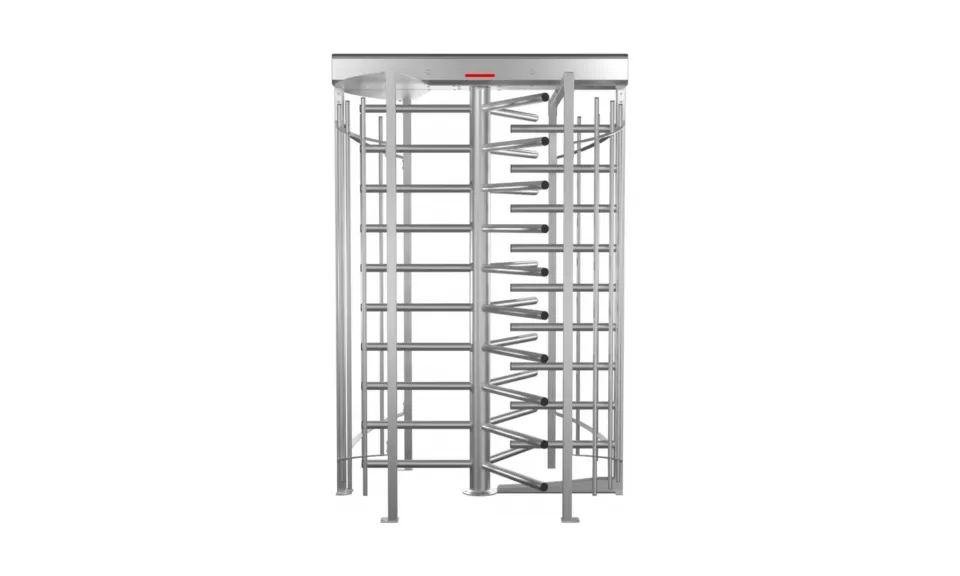

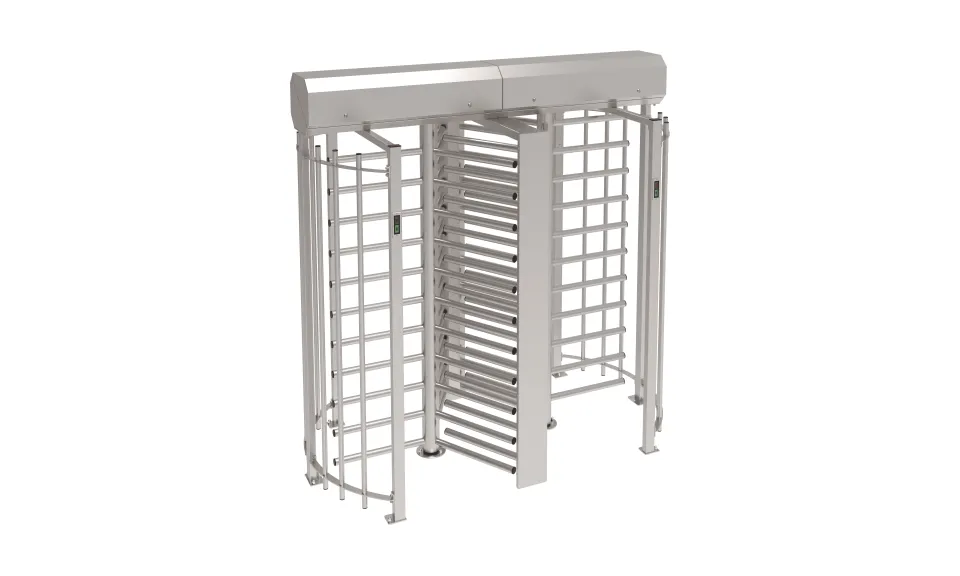

Sesame-S and its lightweight version, Sesame Basic-S, are full-height turnstiles designed to provide a high level of security at stadiums, industrial facilities, parks and other locations with strict access control requirements. Their robust construction ensures excellent strength, durability and reliable operation, even in high-traffic environments. Key benefits: • high security and strict access control; • low operating noise; • an excellent balance of competitive pricing and high quality; • robust housing suitable for high-traffic areas; • customisation according to individual project requirements; • low power consumption; • compatibility with any access control system; • wired remote-control panel included as standard; • selectable operating mode in the event of a power failure.
SESAME-S
| Sesame-S | Sesame Basic-S | |
| Overall dimensions (W×L×H), mm | Type X — 1420×1284×2151 Type Y — 1420×1170×2152 |
Type X — 1420×1174×2150 Type Y — 1420×1170×2152 |
| Throughput, persons/min | 20 | |
| Passage width, mm | 615 | |
| Drive mechanism | SafeLock-EM | |
| Locking system | Two electromechanical locks | |
| Emergency mode | Free passage in both directions | |
| Power-failure mode | Fail Safe — standard Fail Secure — optional |
|
| Construction | Supplied disassembled | |
| Standard finish | Brushed AISI 304 stainless steel | |
| Available finishes | Brushed AISI 316 stainless steel Polished AISI 304 stainless steel Polished AISI 316 stainless steel Powder coating in RAL colours |
|
| Power supply | AC power supply: 100–240 V, 50/60 Hz DC power supply: 12 V |
|
| Maximum power consumption, W | 60 | |
| MCBF, cycles | 10,000,000 | |
| MTTR, min | < 25 | |
| Ingress protection rating | IP41/IP54 * | |
| * The first rating applies to indoor installation and the second to outdoor installation. Protection of up to IP65 is available upon request. |
||
