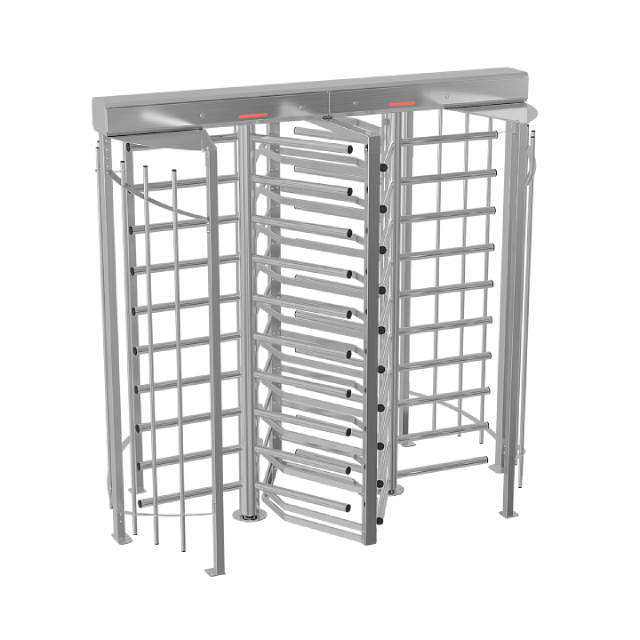

SESAME-S TWIN

Sesame-S Twin is a dual-passage full-height turnstile designed for strict access control and effective protection against vandalism. It is an ideal solution for stadiums, industrial facilities, parks and other locations with the highest security requirements. Its robust welded construction ensures exceptional strength, durability and reliable operation, even in high-traffic environments. Key benefits: • maximum security for stricter access control; • low operating noise; • an excellent balance of competitive pricing and high quality; • robust housing suitable for high-traffic areas; • customisable housing and top-cover design; • low power consumption; • compatibility with any access control system; • wired remote-control panel included as standard; • configurable safe operating mode in the event of a power failure.

  Sesame-S TWIN
Overall dimensions (W×L×H), mm Type Y — 2194×1160×2150
Type X — 2194×1274×2150
Throughput, persons/min 20
Passage width, mm 615
Drive mechanism SafeLock-EM
Locking system Two electromechanical locks
Emergency mode Free passage in both directions
Power-failure mode Fail Safe — standard
Fail Secure — optional
Construction Supplied disassembled
Standard finish Brushed AISI 304 stainless steel
Available finishes Brushed AISI 316 stainless steel
Polished AISI 304 stainless steel
Polished AISI 316 stainless steel
Powder coating in RAL colours
Power supply AC power supply: 100–240 V, 50/60 Hz
DC power supply: 12 V
Maximum power consumption, W 320
MCBF, cycles 10,000,000
MTTR, min < 25
Ingress protection rating IP54/IP65 *
* The first rating applies to indoor installation and the second to outdoor installation.
Protection of up to IP65 is available upon request.
