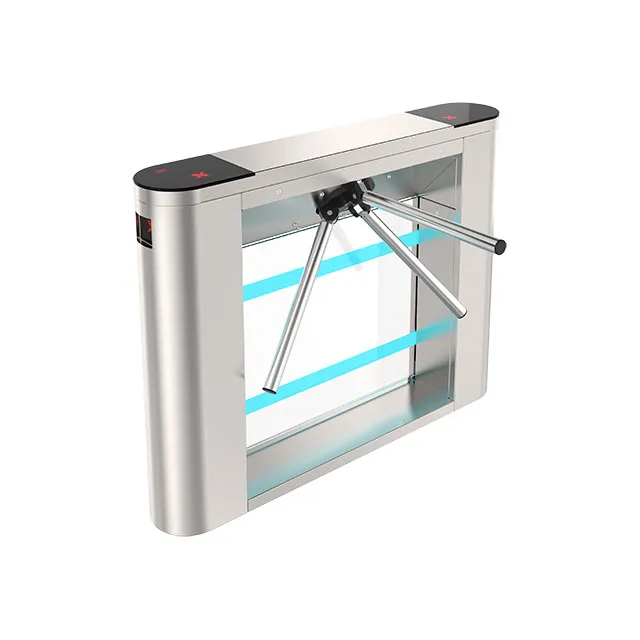

Galaxy-M is a stylish bidirectional motorized tripod turnstile that combines the strength of stainless steel with the elegance of tempered glass. The illuminated glass cabinet makes the turnstile a natural fit for modern interiors — from business centers to retail spaces.
Stylish design with LED lighting.
Built-in LED lighting displays access status, while the smooth and silent operation of the servo-drive mechanism makes passage through the turnstile comfortable for users. The cabinet and top cover can be customized to meet any project requirements.
Wireless TWIC control.
The TWIC panel allows remote control of the turnstile without the need for additional wiring. Built-in sensors detect attempts to pass under or over the turnstile arm, and the "anti-panic" function guarantees quick lowering of the arm when needed.
Installation flexibility.
Galaxy-M can be used as either a stationary or portable solution thanks to its compatibility with a mobile platform. The turnstile supports integration with a variety of access control and identification systems, as well as integration of a card-collection device.
Reliability and energy efficiency.
Low power consumption and the option to connect a backup battery ensure uninterrupted operation even during power outages. A wired remote control panel is included as standard.
Manufactured by TiSO. Full technical specifications are available in the "Specifications" section below.
| Model | Galaxy - M |
|---|---|
| Unit dimensions (HxLxW), mm | 1000x1314x745 |
| Crossing capacity in free access mode, person/min | 60 |
| Crossing capacity in single access mode, person/min | 25 |
| Passage width, mm | 600 |
| Mechanism | Servo-driven (Triservo-M) |
| Blocking mechanism | Two electromechanical stop catches (separate locking system) |
| Emergency mode (when power goes off) | Arm drops when power goes off |
| Drop arm function | Drop arm function can be activated when power is on Drop arm function activates automatically when power goes off |
| Fail safe | + (drop arm) |
| Standard housing | Brushed SS AISI 304 |
| Available housing | Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated (any RAL up on request) |
| Voltage | AC (100-240)V, 50/60Hz; DC source 12 V |
| Maximum power consumption | 55 W |
| Enclosure rating | IP 41 |
| MCBF, cycles | 5 000 000 |
| * first figure is standard, all other available upon request. | |
The table can be scrolled horizontally
Send a request — an engineer will select a configuration for your facility and send a proposal.
